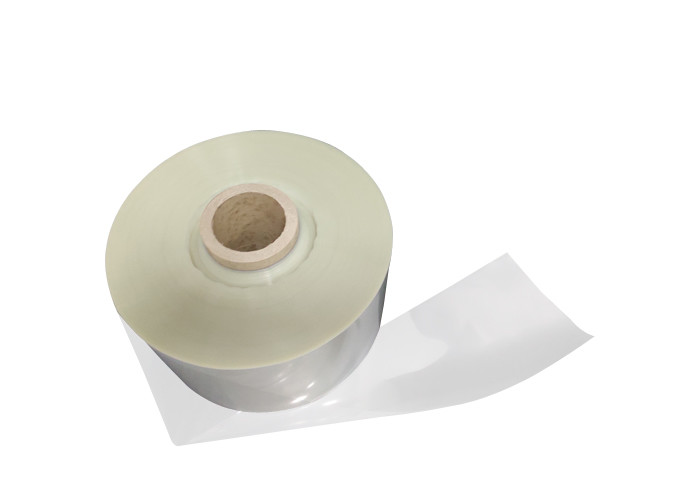

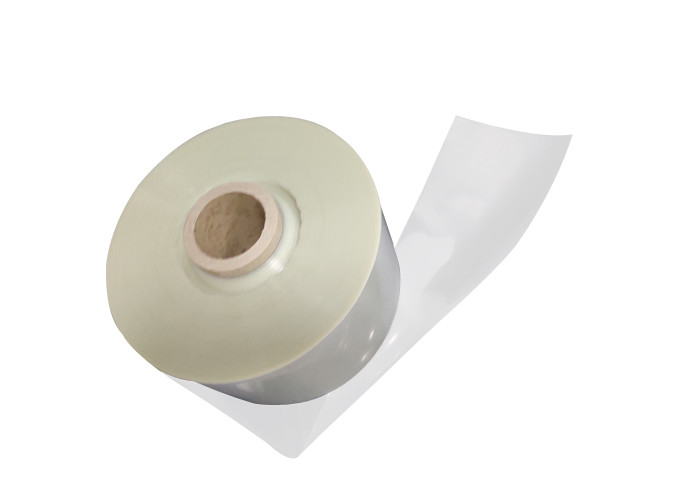

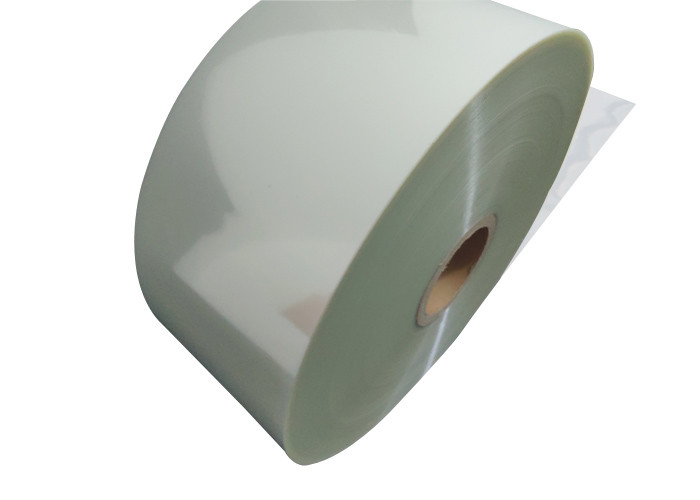

PET Polyester Self Adhesive Window Film High Temp Resistant For Packaging / Printing

  • PET Polyester Self Adhesive Window Film High Temp Resistant For Packaging / Printing
  • PET Polyester Self Adhesive Window Film High Temp Resistant For Packaging / Printing
  • PET Polyester Self Adhesive Window Film High Temp Resistant For Packaging / Printing
Place of Origin Guangdong, China (Mainland)
Brand Name Watai
Certification ROSH,SVHC,MSDS,TDS
Model Number WT
Minimum Order Quantity negotiation
Price negotiation
Packaging Details Wooden Packaging
Delivery Time 30 work days
Payment Terms L/C, T/T
Supply Ability 1000 Tons per

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 50um-250um Width 500mm-1500mm
Length 100m-6000m Surface Treatment Transparent
Application Envelope Window, Packaging Bag Window Type Windows Film
Material PET,Mylar
High Light

envelope window film

,

matte window film
Leave a Message
Product Description



High temperature resistant PET polyester film , BOPET film for packaging and printing





Product Description:



The surface of the film is smooth and smooth, free of defects such as creases, tears, particles, bubbles, pinholes, etc. The product has the advantages of excellent mechanical properties, small thickness tolerance, stable chemical properties, high heating temperature, low heat shrinkage and good flexibility. It is mainly used for food packaging materials. The surface of the material has high adsorption, and the printing ink is not easy to fall and the composite is tight





Specifications:





Index name Company Index value
Tensile Strength 25um~100um MPa ≥150
＞100um~190um ≥140
＞190um ≥110
Elongation at Break 25um~50um % ≥60
＞50um~350um ≥80
shrinkage 25um~190um % ≤3.0
＞190um ≤2.0
Power frequency electrical strength 25um V/um ≥170
Volume resistivity Ω•m ≥1.0×1014
Relative permittivity (50Hz) - 2.9~3.4
Dielectric loss factor (50Hz) - ≤5.0×10-3
Density kg/m3 6020 6021
1390±10 1400+10-20
Melting point ℃ ≥256
Surface resistivity Ω ≥1.0×1013
Electrolytic corrosion Visual method Level A1
Metal wire tensile strength method % ≤2
Dimensional stability at high temperature pull ℃ ≥200
pressure ≥200





Application:




Screen printing panel, membrane switch, membrane panel, membrane circuit, touch switch, medical equipment, instrument and meter, electromechanical, office equipment, electronic toys, home appliances and other control and operation panels
