Product Details:
Payment & Shipping Terms:
|
| Material: | PET | Color: | Red,blue |
|---|---|---|---|
| Transparency: | Transparent | Thickness: | 0.025mm-0.25mm |
| Width: | 30mm-1250mm | Length: | 100m-6000m |
| Hardness: | Soft | Processing Type: | Multiple Extrusion |
| High Light: | polyester release film,pet transfer film |
||

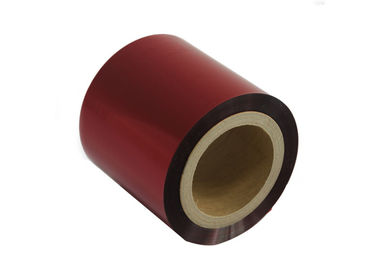

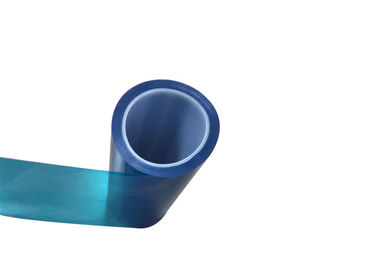

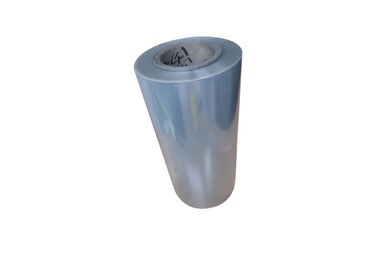

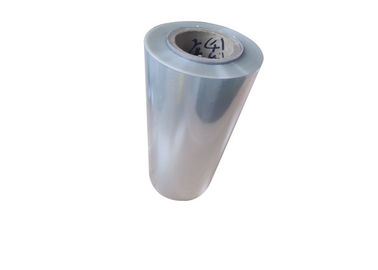

Soft Hardness PET Release Film Clear Transparent Antistatic Silicone Pet Liner Colored
Product Description:
Antistatic Release film can be used in adhesives, flexible printed circuit boards, optical transparent adhesives, packaging, printing, nameplate, film switches, insulating products, circuit boards, electronics, medical, die cutting and other processing industries.
Physical properties:
| Release Film | Properties | |
| Inner Diameter(core) | 76.2±0.5 | |
| Density | 1.4 | |
| Tensile Strength(MPa) | MD | ≥140 |
| TD | ≥140 | |
| Elongation to break(%) | MD | ≥90 |
| TD | ≥90 | |
| shrinkage(%) | MD | ≤0.6 |
| TD | ≤0.6 | |
| Haze(%) | ≤3.5 | |
| Temperature Resistance(℃) | -100~200 | |
| Coating on the surface (G/M2) | 0.2-0.6 | |
| smell | non | |
| Solubility | Insoluble in water or normal solvents | |
| Subsequent Adhesion Strength (%) | ≥90 | |
Storage:
Be wrapped in plastic, even if it is up on the machine, stored in a cool(below 45℃) dry environment and protected from dirty, extreme temperatures and humidity, avoid UV or sunlight. To obtain best performance, use this product within 6 months from date of manufacture.
