| Thickness: | 12mic-125mic | Usage: | Screen Printing Film |
|---|---|---|---|
| Width: | 30mm-1250mm | Length: | 100m-6000m |
| Hardness: | Soft | Processing Type: | Multiple Extrusion |
| High Light: | polyester release film,pet transfer film |
||

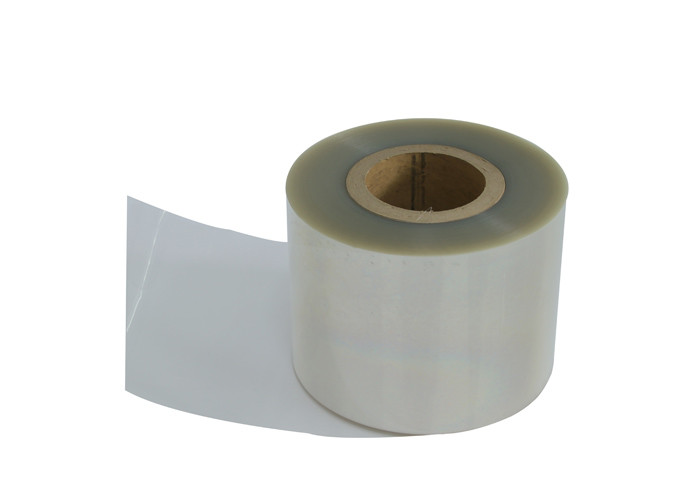

Heat Transfer Polyester Release Film Thickness 12- 125um For Screen Printing
Product Description:
1.good processibility
2.high cleanliness
3.no soft flocks produced in the die cutting process
4.show ultralight and stable release force for all kinds of pressure sensitive adhesive
Physical properties:
| Release Film | Properties | |
| Inner Diameter(core) | 76.2±0.5 | |
| Density | 1.4 | |
| Tensile Strength(MPa) | MD | ≥140 |
| TD | ≥140 | |
| Elongation to break(%) | MD | ≥90 |
| TD | ≥90 | |
| shrinkage(%) | MD | ≤0.6 |
| TD | ≤0.6 | |
| Haze(%) | ≤3.5 | |
| Temperature Resistance(℃) | -100~200 | |
| Coating on the surface (G/M2) | 0.2-0.6 | |
| smell | non | |
| Solubility | Insoluble in water or normal solvents | |
| Subsequent Adhesion Strength (%) | ≥90 | |
Application:
1. Apply to printing: offset printing, screen printing, gravure, flexo hot peeling heat transfer products.
2. Applicable heat transfer materials: cotton, chemical fiber, cotton blended fabric, EVA, non-woven fabrics, leather and other heat resistant fabric
