Product Details:
Payment & Shipping Terms:
|
| Size: | Customized | Color: | Transparent |
|---|---|---|---|
| Width: | 100mm-1500mm | Length: | 100m-6000m |
| Hardness: | Soft | Processing Type: | Multiple Extrusion |
| High Light: | matte transparency film,mylar pet film |
||

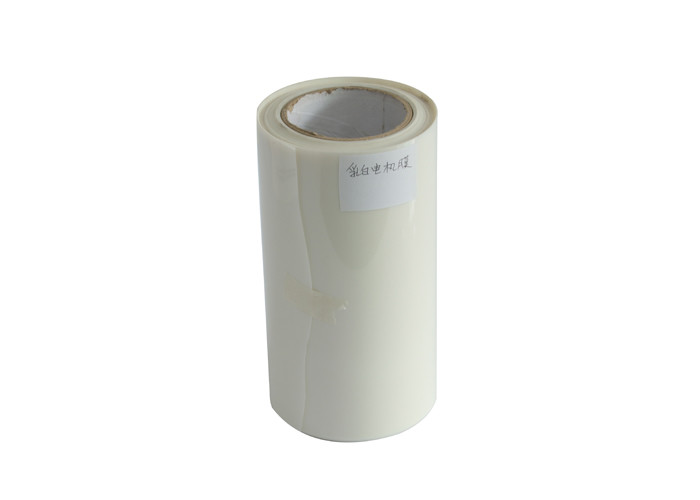

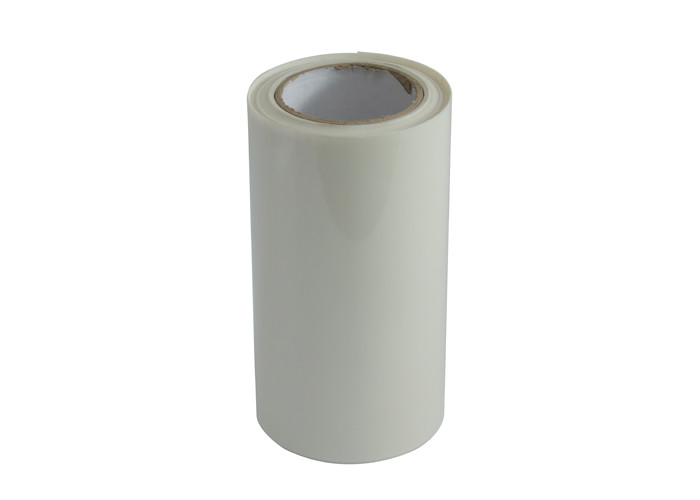

Thickness 50-500um Bopet Polyester Film High Temperature Multiple Extrusion Processing
Product Description:
This product is widely used in viscose products, electronic industry, waterproof industry, composite materials, self-adhesive labels, printing and packaging, food packaging, aluminium plating, wire and cable, insulation and other industries.
Physical properties:
| Properties | Unit | Test Values | ||||||
| Single Layer Thickness | Average Thickness | μm | 99.3 | |||||
| Tensile Strength | MD | MPa | 220 | |||||
| TD | 216 | |||||||
| Elongation at Break | MD | % | 148 | |||||
| TD | 126 | |||||||
| Thermal Shrinkage 150℃×30min | MD | % | 1.2 | |||||
| TD | -0.2 | |||||||
| Haze | % | 1.5 | ||||||
Characteristic:
1.Excellent machinability
2.Excellent chemical resistance
3.Good insulation has a certain extinction effect
