| Thickness: | 0.05mm-0.5mm | Width: | 100m-1500m |
|---|---|---|---|
| Length: | 100m-6000m | Transparency: | Translucent |
| Material: | PET | Type: | Stretch Film |
| Feature: | Moisture Proof | Hardness: | Soft |
| High Light: | matte transparency film,mylar pet film |
||

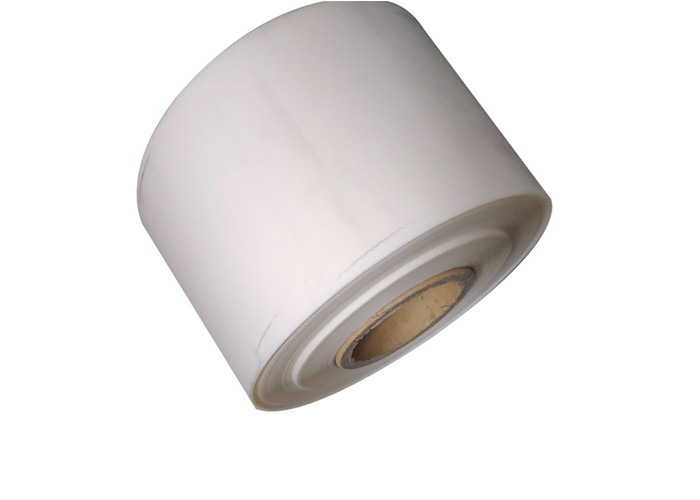

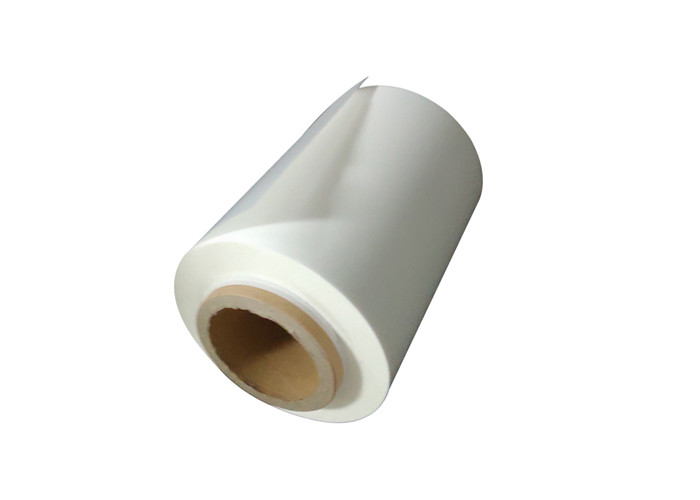

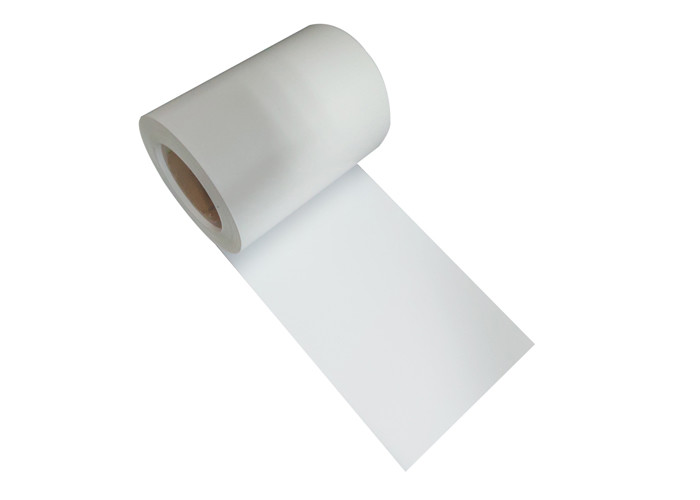

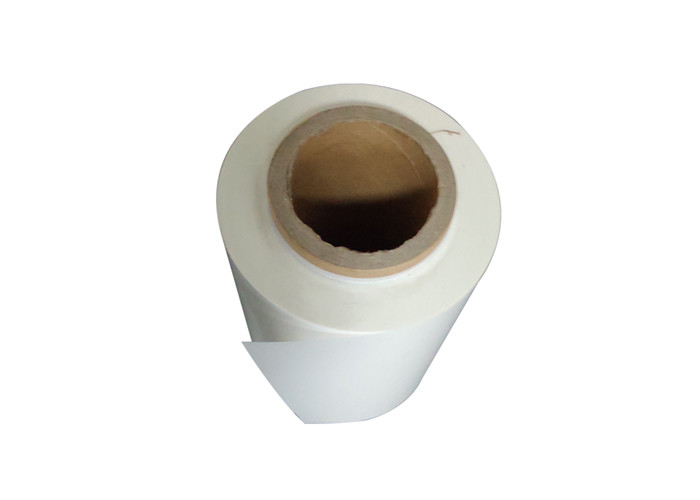

Pet insulation film / Opal semi permeable PET film , Electric machinery film
Characteristic
1. Excellent mechanical properties
2. Good electrical insulation performance
3. Good heat resistance, applied to class B (130 ° C) insulation system
4. It has excellent machinability.
Specifications:
| Properties | Unit | Test Values | Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 25-100 | ASTM D882 | |||||||
| Tensile Strength | MD | MPa | 170 | ||||||||
| TD | 200 | ||||||||||
| Elongation at Break | MD | % | 110 | ||||||||
| TD | 110 | ||||||||||
| F5 value | MD | MPa | 100 | ||||||||
| Thermal Shrinkage 150℃×30min | MD | % | 1.3 | ||||||||
| TD | 0.7 | ||||||||||
| Transmittance | % | 75 | |||||||||
Application:
Automobile film, construction film, furniture film, agricultural film, printing, packaging, composite plate, metal, advertising, painting, screen protection film and other fields
