| Thickness: | 0.015mm-0.125mm | Length: | 1000mm-1090mm |
|---|---|---|---|
| Width: | 100m-6000m | Processing Type: | Multiple Extrusion |
| Material: | BOPET Release Film | Type: | Stretch Film |
| High Light: | matte polyester film,matte lamination film |
||

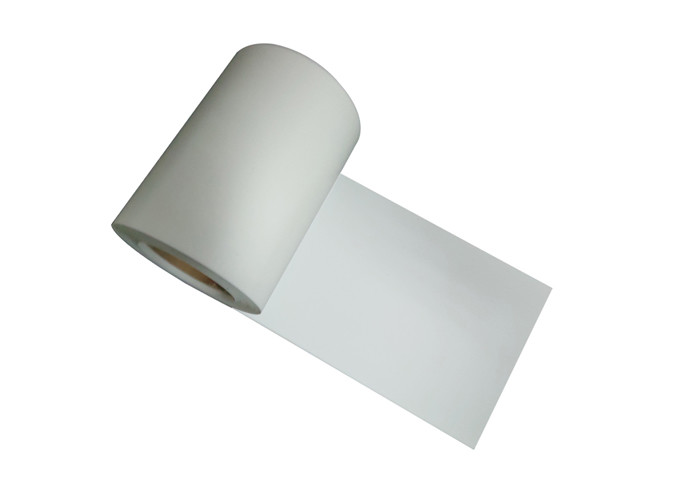

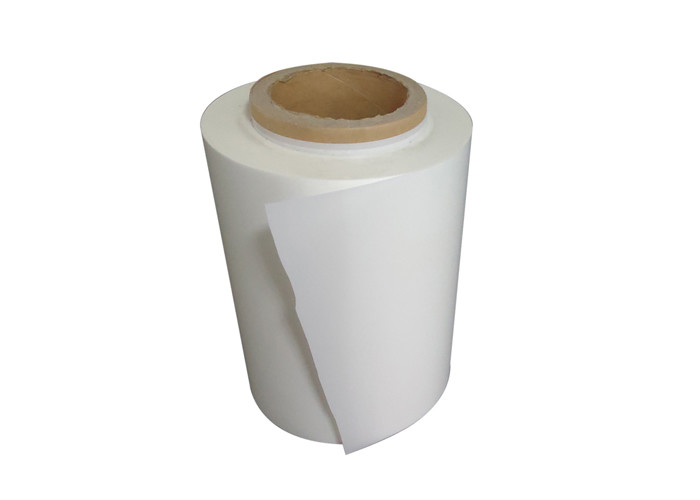

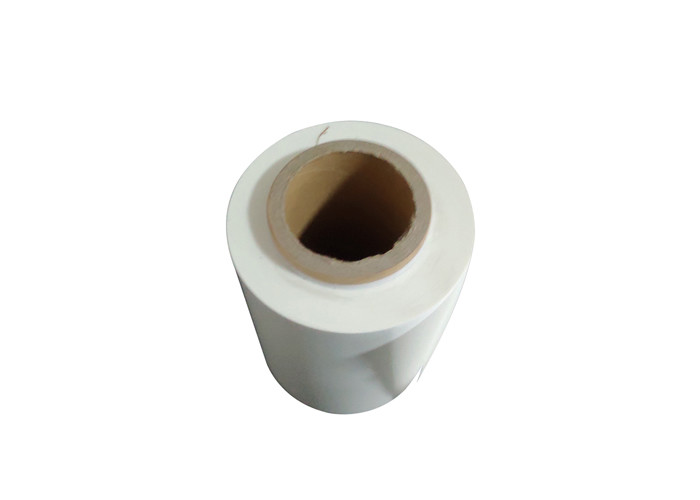

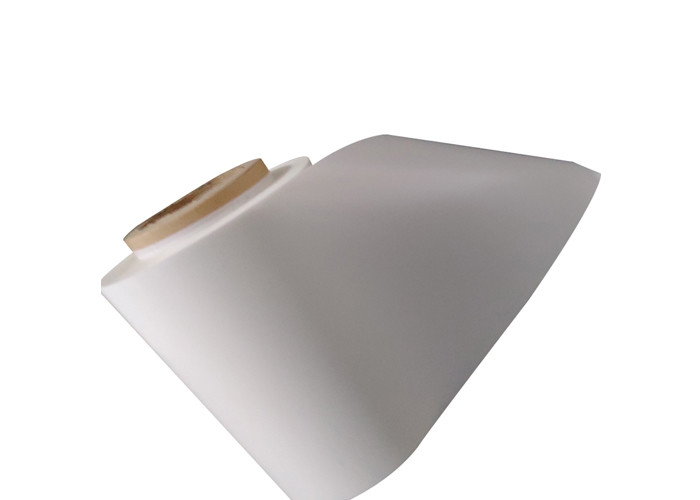

Single Side Pet Protective Film High Temperature Resistant Matte Composite Processing
Product Description:
High end compression insulation material, with extremely high filling and temperature resistance, can completely replace copper foil and PTX pressing plate. The matte release film is the superior isolation material for the processing of epoxy resin printed circuit, with high tensile strength and tear strength, chemical inertia and non viscosity.
Specifications:
| Properties | Unit | Test Values | Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 15-125 |
GB6845 ASTM D882 GB/T13541 |
|||||||
| Tensile Strength | MD | MPa | 150 | ||||||||
| TD | 160 | ||||||||||
| Elongation at Break | MD | % | 140 | ||||||||
| TD | 90 | ||||||||||
| F5 value | MD | MPa | 100 | ||||||||
| Thermal Shrinkage 150℃×30min | MD | % | 1.2 | ||||||||
| TD | 0.5 | ||||||||||
| Transmittance | % | 18 | |||||||||
Characteristics:
1. The surface is flat and smooth without wrinkles, bubbles and holes.
2. Excellent performance, flatness and temperature resistance
3. Materials with excellent flame retardant and filling performance and high-end FPC compression isolation
