Dongguan Wantai Electronic Material Co., Ltd.
Customer First Win Win Cooperation
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Thickness: | 0.025mm-0.25mm | Length: | 1000mm-1500mm |
|---|---|---|---|
| Width: | 100m-6000m | Material: | Release Film |
| Processing Type: | Multiple Extrusion | Type: | Stretch Film |
| High Light: | matte polyester film,matte lamination film |
||

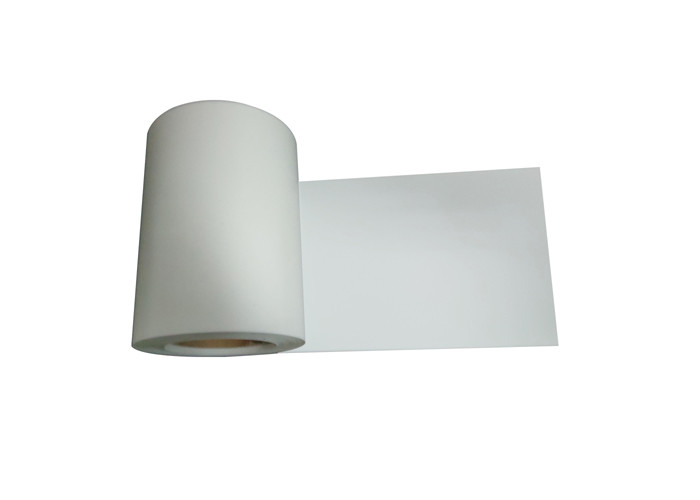

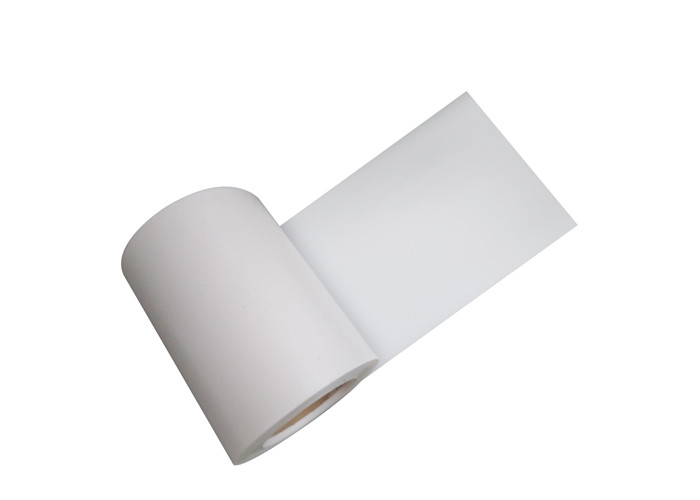

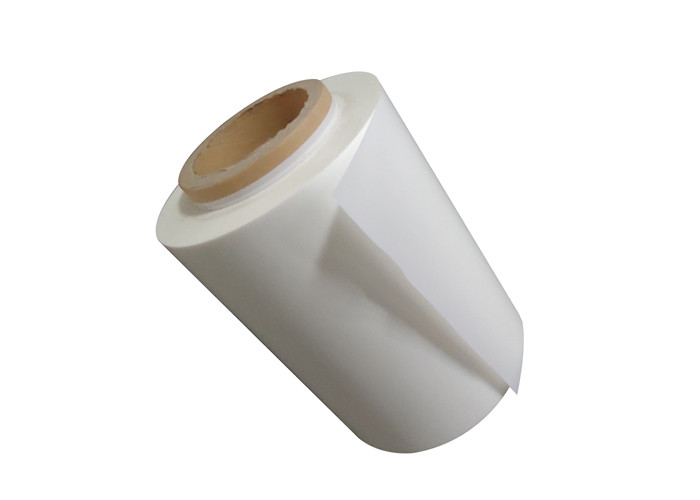

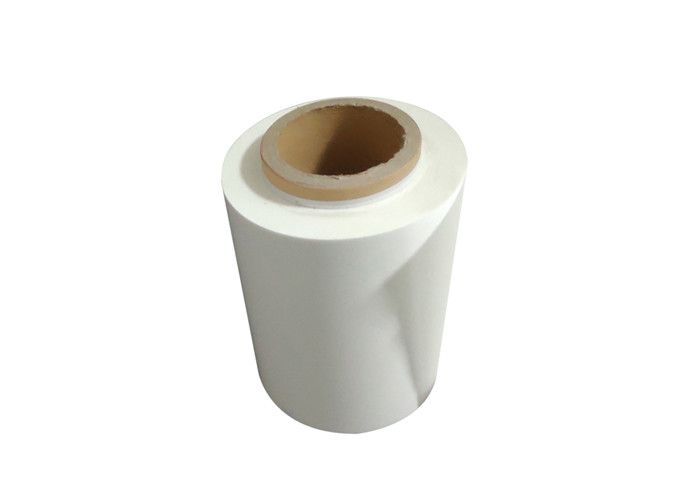

Double Sided Matte PET Film Insulation Materials Anti - Counterfeiting Label Composite
Product Description:
Hot stamping, transfer, screen printing, pad printing film. Pet printing composite film, composite paper, self-adhesive, printing, double-sided tape, insulation products, packaging materials, die-cutting industry, etc. are widely used. According to the customer's requirements, we can process slitting, cutting, laminating and so on.
Specifications:
| Physical characteristics | Unit | Test Values | Testing Standard | ||||||
| Thickness | µm | 75 | 100 | ASTM D 374 | |||||
| Fracture strength | MD | N/mm³ | 196 | 193 | JIS C 2151 | ||||
| TD | 229 | 216 | |||||||
| Elongation at break | MD | % | 176 | 201 | JIS C 2151 | ||||
| TD | 142 | 152 | |||||||
| Heat shrinkage rate 150℃,30min | MD | % | 1.2 | 1.2 | JIS C 2151 | ||||
| TD | 0.2 | 0.2 | |||||||
| Haze | % | 11 | 14 | JIS C 7105 | |||||
| Transmittance | % | 89.3 | 89 | JIS C 7105 | |||||
Characteristics:
The double-sided matte matter release film is widely used in film lamination, nameplate, printing, silk screen printing, anti-counterfeiting label, adhesive isolation, insulation materials, electronic industry, waterproof packaging, automobile foam, tape industry, etc.
Contact Person: Mr. Cai
Tel: 86-13925722988
Fax: 86-769-22760409
