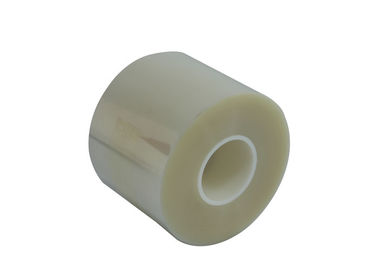

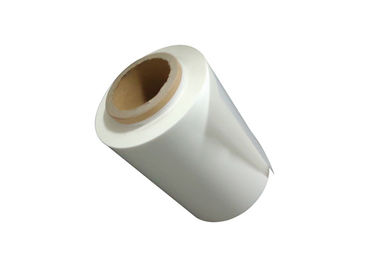

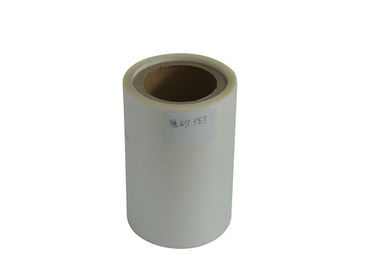

S10 Bopet Film PET Transparent Foggy Color On Printing Light Box Surface
| Place of Origin | Guangdong, China (Mainland) |
|---|---|
| Brand Name | Watai |
| Certification | ROSH,SVHC,MSDS,TDS |
| Model Number | WT |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Wooden Packaging |
| Delivery Time | 30 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Tons per |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thickness | 4.5um-250um | Width | 100mm-1500mm |
|---|---|---|---|
| Length | 100m-6000m | Transparency | Transparent |
| Material | Mylar Film | Application | Printing |
| High Light | bopet polyester film,matte transparency film |
||
Product Description
PET film on the surface of printing light box , transparent and foggy s10bopet film
Product introduction
S10 polyester film is nontoxic and tasteless, with high tensile strength, good stiffness, burn crack resistance, not easy to be damaged, excellent electrical and optical properties, good oxygen and humidity resistance, cold resistance (- 70 ℃), heat resistance (+ 200 ℃), corrosion resistance and stable shrinkage.
Specifications:
| Product specification | |||||
| Thickness | μm | 12~150 | |||
| Width | mm | 500~2000 | |||
| Length | m | 100-6000 | |||
| Physical characteristics | ||||||||
| Properties | Unit | Test Values | Testing Standard | |||||
| Thickness | μm | 12 | DIN 53370 | |||||
| Tensile strength | MD | Mpa | 210 | ASTM D 882 | ||||
| TD | 210 | |||||||
| Modulus of elasticity | MD | Mpa | 4100 | ASTM D 882 | ||||
| TD | 4100 | |||||||
| Glossiness(45° Refraction) | % | 135 | ASTM D 2457 | |||||
| Elongation at break | MD | % | 140 | ASTM D 882 | ||||
| TD | 130 | |||||||
| Heat shrinkage 150 ℃, 30min | MD | % | 1.6 | ASTM D 1204 | ||||
| TD | 0.2 | |||||||
| Haze | % | 1.3 | ASTM D 1003 | |||||
Application:
1. Film: screen panel, film switch, film panel, film circuit, touch switch, etc.
2. Panel type: medical equipment, instruments and meters, electromechanical, office equipment, electronic toys, home appliances and other control operation panels.
3. Sign type: PVC sign, rear of model, logo, nameplate, nameplate, etc.
