Product Details:
Payment & Shipping Terms:
|
Thickness: | 0.012mm-0.25mm | Length: | 1000mm-1500mm |
---|---|---|---|
Width: | 100m-6000m | Material: | Matt Bopet Film |
Processing Type: | Multiple Extrusion | Type: | Stretch Film |
Transparency: | Transparent | ||
High Light: | matte polyester film,matte lamination film |

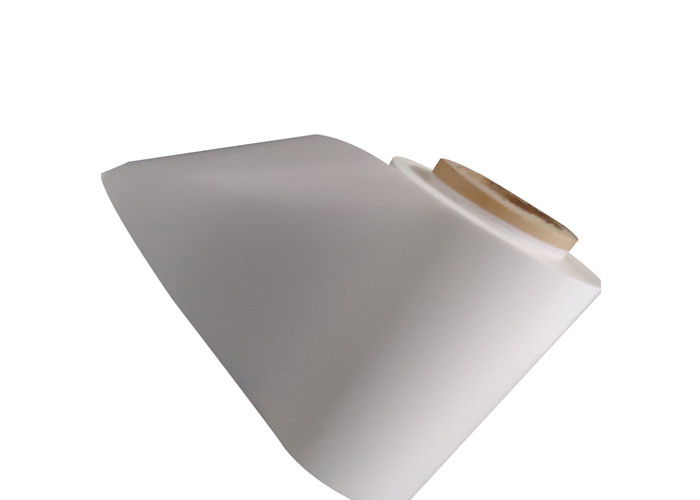

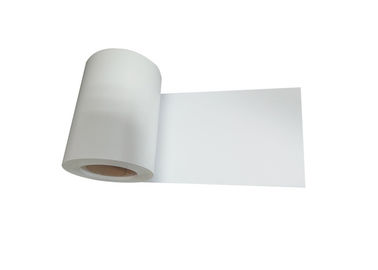

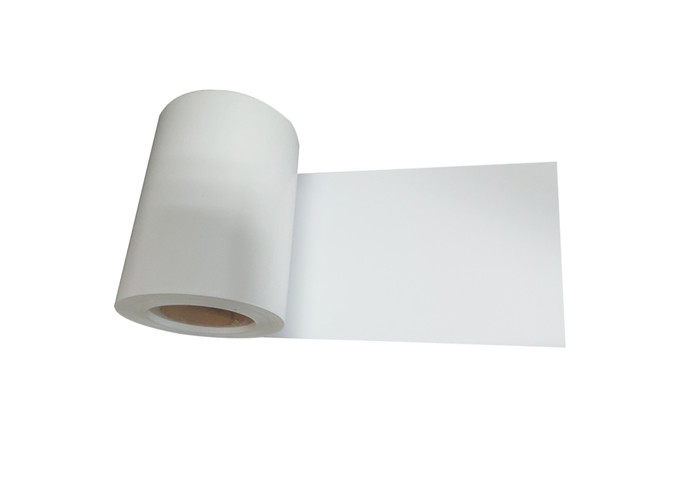

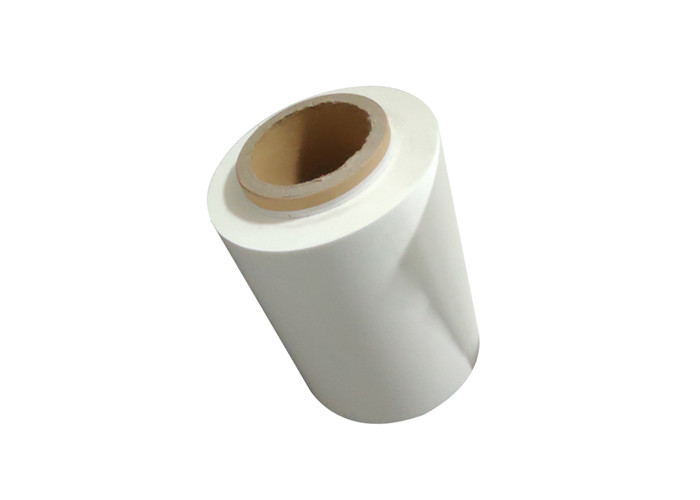

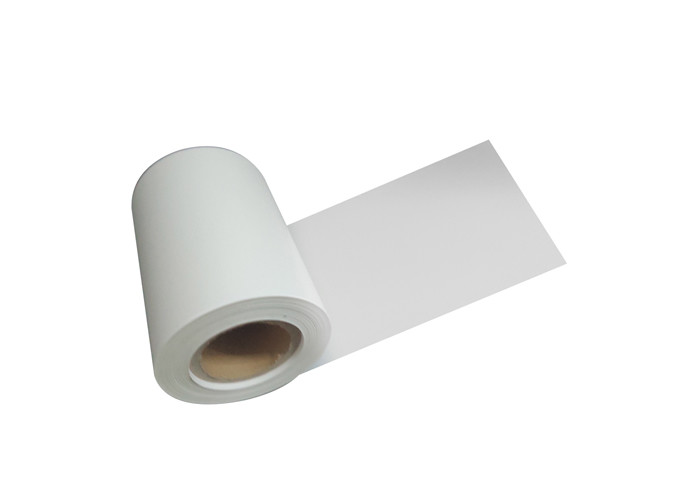

Transparent Matte PET Film Roll Width 1000mm For Insulating Electrical Appliances
Product Description:
It is applied to the internal insulation of electrical equipment, and can be compounded after common printing. The product has good transparency, glossiness, excellent ink absorption and adhesive adhesion, high tensile strength and excellent dimensional stability.
Specifications:
Properties | Unit | Test Values | Testing Standard | ||||||||
Single Layer Thickness | Average Thickness | μm | 15-125 | ||||||||
Tensile Strength | MD | MPa | 200 | ASTM D 882 | |||||||
TD | 200 | ||||||||||
Elongation at Break | MD | % | 130 | ASTM D 882 | |||||||
TD | 120 | ||||||||||
Thermal Shrinkage 150℃×30min | MD | % | 1.5 | ASTM D 1204 | |||||||
TD | 0.2 | ||||||||||
Transmittance | % | 80 | ASTM D 1746 | ||||||||
