| Transparency: | Opaque | Hardness: | Soft |
|---|---|---|---|
| Thickness: | 25um-100um | Width: | 100mm-1500mm |
| Length: | 100m-6000m | Material: | Mylar Film |
| Color: | White | ||
| High Light: | white polyester film,white protective film |
||

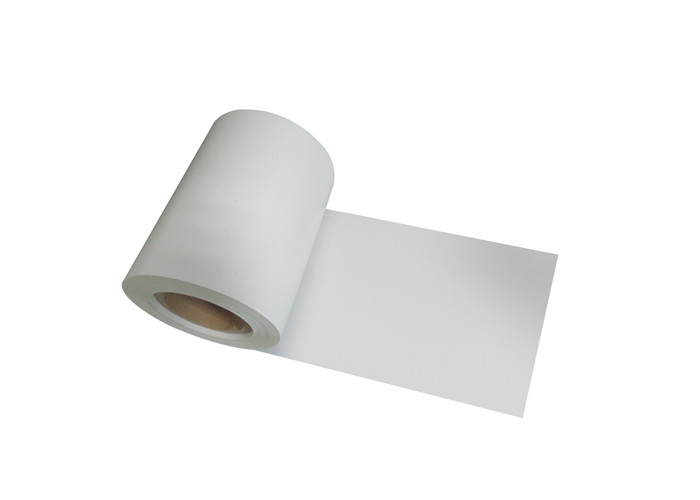

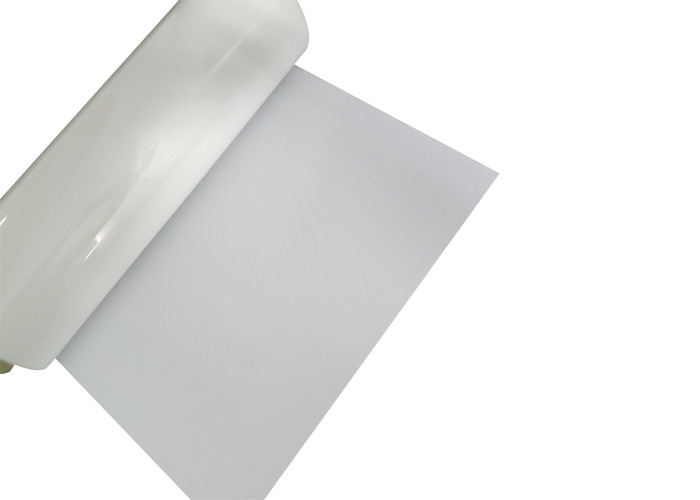

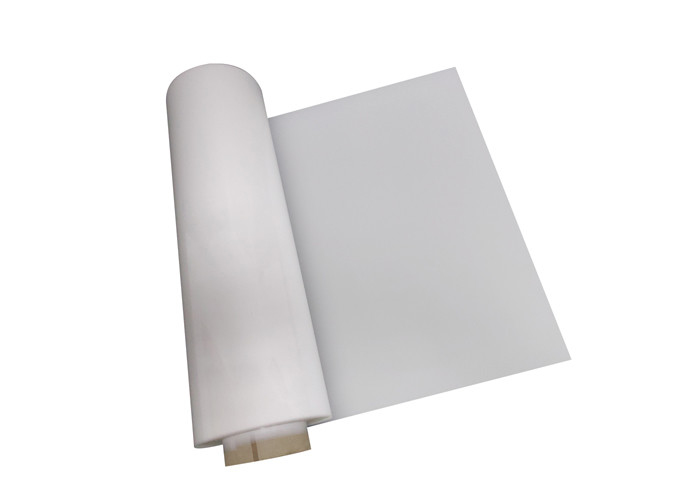

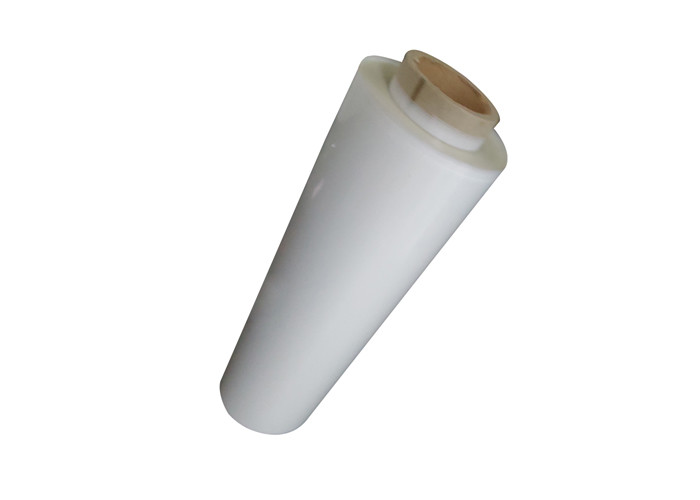

White printing PET film , die cutting and punching BOPET polyester film
Product Description:
White pet film is also a Bi-axially Oriented PET film,but added with white master batch ,mixed with transparent PET resin ,using the same producing method,but high skillful technology.Our white pet film has high opacity, good whiteness and low light tranmission.which is suitable for varied printing applications especially in label and graphics industry,also great performance in lamination application.
Specifications:
| Product specification | |||||
| Thickness | μm | 25-100 | |||
| Width | mm | 500~1600 | |||
| Length | m | 100-6000 | |||
| Physical characteristics | ||||||||
| Properties | Unit | Test Values | Testing Standard | |||||
| Thickness | μm | 50 | DIN 53370 | |||||
| Tensile strength | MD | Mpa | 140 | ASTM D 882 | ||||
| TD | 170 | |||||||
| Elongation at break | MD | % | 140 | ASTM D 882 | ||||
| TD | 170 | |||||||
| Heat shrinkage 150 ℃, 30min | MD | % | 1.5 | ASTM D 1204 | ||||
| TD | 0 | |||||||
| Transmittance | % | 20 | ASTM D 1746 | |||||
Application:
Printing electronic packaging, color box insulation, flexible circuit, printing film switch, window pasting machine, window film, printing film, motor gasket, oil film, printing, scalding, window pasting and other fields.
