Product Details:
Payment & Shipping Terms:
|
| Hardness: | Soft | Thickness: | 4.5um-250um |
|---|---|---|---|
| Width: | 100mm-1500mm | Length: | 100m-6000m |
| Transparency: | Transparent | Material: | Mylar Film |
| Size: | Customized | ||
| High Light: | bopet polyester film,matte transparency film |
||

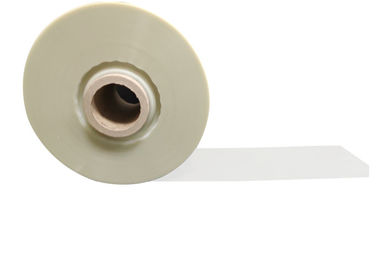

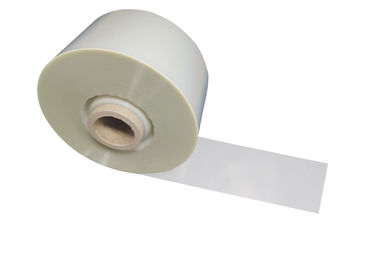

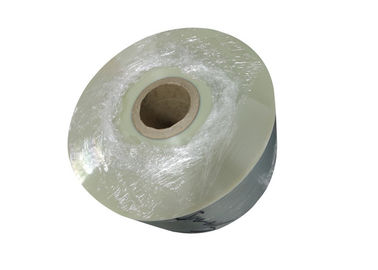

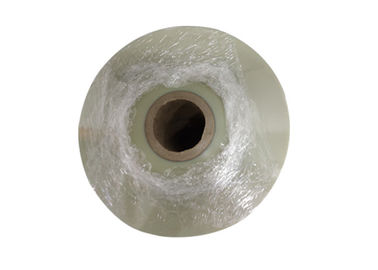

Anti scratch s10 bopet film , PET film for mobile phone screen protection
Product introduction
The film can protect the screen from scratch, slight impact and daily use, has strong adhesion, is easy to remove, does not leave any residue, edge to edge bending fit, easy to carry - will not hinder the use with any type of box, fingerprint sensor will not be affected after using the screen protector
Specifications:
| Properties | Unit | Test Values | Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 11.5 | ||||||||
| Tensile Strength | MD | MPa | 271 | ASTM D 882 | |||||||
| TD | 215 | ||||||||||
| Elongation at Break | MD | % | 124 | ASTM D 882 | |||||||
| TD | 157 | ||||||||||
| Breakdown Voltage | kV | 4.1 | ASTM D 149 | ||||||||
| Thermal Shrinkage 150℃×30min | MD | % | 1.5 | ASTM D 1204 | |||||||
| TD | -0.1 | ||||||||||
| Volume Resistivity at 20℃ | Ω·cm | 3.00E+17 | ASTM D 149 | ||||||||
Application:
1. Film: screen panel, film switch, film panel, film circuit, touch switch, etc.
2. Panel type: medical equipment, instruments and meters, electromechanical, office equipment, electronic toys, home appliances and other control operation panels.
3. Sign type: PVC sign, rear of model, logo, nameplate, nameplate, etc.
