| Thickness: | 4.5um-250um | Width: | 100mm-1500mm |
|---|---|---|---|
| Length: | 100m-6000m | Transparency: | Transparent |
| Material: | PET Film | Size: | Customized |
| High Light: | bopet polyester film,matte transparency film |
||

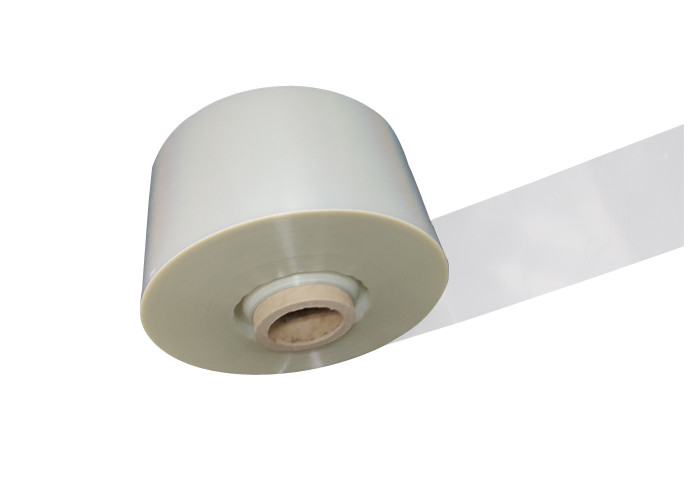

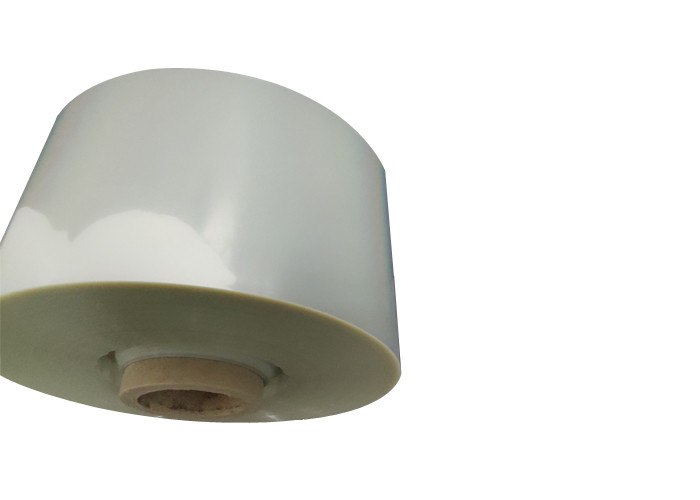

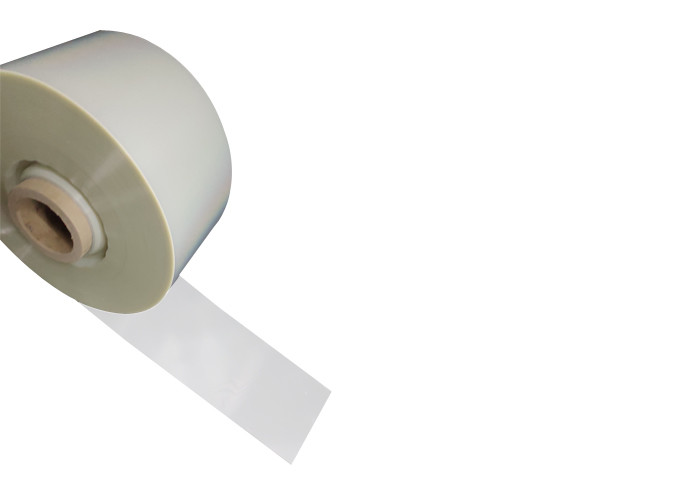

Fireproof and foggy s10Mylar polyester film , customized processing
Product introduction
S10 PET film is also called S10 fog PET film, BOPET fog film, fog polyester film, s10pet film is widely used in electronics, electrical appliances, power transmission and transformation equipment, packaging materials.
Specifications:
| Properties | Unit | Test Values | Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 11.5 | ||||||||
| Tensile Strength | MD | MPa | 271 | ASTM D 882 | |||||||
| TD | 215 | ||||||||||
| Elongation at Break | MD | % | 124 | ASTM D 882 | |||||||
| TD | 157 | ||||||||||
| Breakdown Voltage | kV | 4.1 | ASTM D 149 | ||||||||
| Thermal Shrinkage 150℃×30min | MD | % | 1.5 | ASTM D 1204 | |||||||
| TD | -0.1 | ||||||||||
| Volume Resistivity at 20℃ | Ω·cm | 3.00E+17 | ASTM D 149 | ||||||||
Application:
S10, with its standard characteristics, can be used in a wide range of industrial material applications, including FPC, Fire prevention, membrane switches, adhesive tapes, electrical insulation, and casting release.
