Product Details:
Payment & Shipping Terms:
|
| Thickness: | 0.125mm-0.35mm | Width: | 500mm-1500mm |
|---|---|---|---|
| Length: | 100m-6000m | Material: | Bopet Film |
| Type: | Stretch Film | Hardness: | Soft |
| Processing Type: | Multiple Extrusion | ||
| High Light: | bopet polyester film,matte transparency film |
||

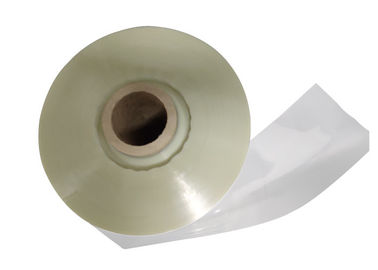

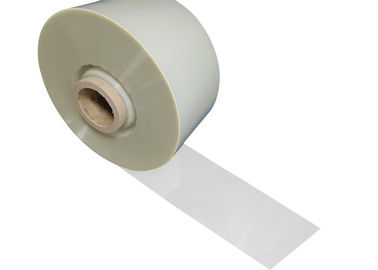

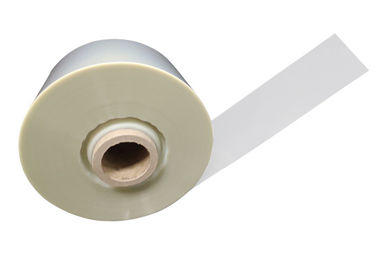

Food packaging Foggy shopwindow film , S10 Foggy PET film thickness 0.188-0.35mm
Product Description:
PET film is a kind of packaging film with various functions. It has good transparency and luster, good air tightness and fragrance retention, medium moisture resistance and low moisture permeability. The mechanical properties of PET film are excellent, its strength and toughness are better than that of all thermoplastics, and its tensile strength and impact strength are much higher than that of general films; moreover, it has good stiffness, stable size, and is suitable for secondary processing such as printing and paper bags. PET film also has excellent heat and cold resistance, chemical resistance and oil resistance.
Specifications:
| Properties | Unit | Test Values | Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 125 | ||||||||
| Tensile Strength | MD | MPa | 208 | ASTM D 882 | |||||||
| TD | 216 | ||||||||||
| Elongation at Break | MD | % | 171 | ASTM D 882 | |||||||
| TD | 151 | ||||||||||
| Coefficient of Friction | us | - | 0.6 | ASTM D 1894 | |||||||
| ud | 0.4 | ||||||||||
| Thermal Shrinkage 150℃×30min | MD | % | 2 | GB/T 13541 | |||||||
| TD | 1 | ||||||||||
| Breakdown Voltage | kV | 4.1 | ASTM D 149 | ||||||||
Characteristics:
Good insulation, high temperature resistance, low material shrinkage under high temperature, good printing adaptability, high adhesion with various inks
Use:
Keyboard film switch, inscription (silk screen) printing film, film window, electronic toy film circuit, soft circuit board printing, gluing, compounding, printing, packaging, silicon coating, insulation and silk screen flexible circuit printing, packaging material product printing
