Customized Transparent PET Polyester Film BOPET Material For Wire / Cable Belt
| Place of Origin | Guangdong, China (Mainland) |
|---|---|
| Brand Name | Watai |
| Certification | ROSH,SVHC,MSDS,TDS |
| Model Number | WT |
| Minimum Order Quantity | negotiation |
| Price | negotiation |
| Packaging Details | Wooden Packaging |
| Delivery Time | 30 work days |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000 Tons per |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Processing Type | Multiple Extrusion | Thickness | 7.5um-250um |
|---|---|---|---|
| Width | 100mm-1500mm | Length | 100m-6000m |
| Packing | PE Bag&carton Packing | Material | BOPET Film |
| High Light | polyester pet film,transparent polyester film,Multiple Extrusion PET Polyester Film |
||
Product Description

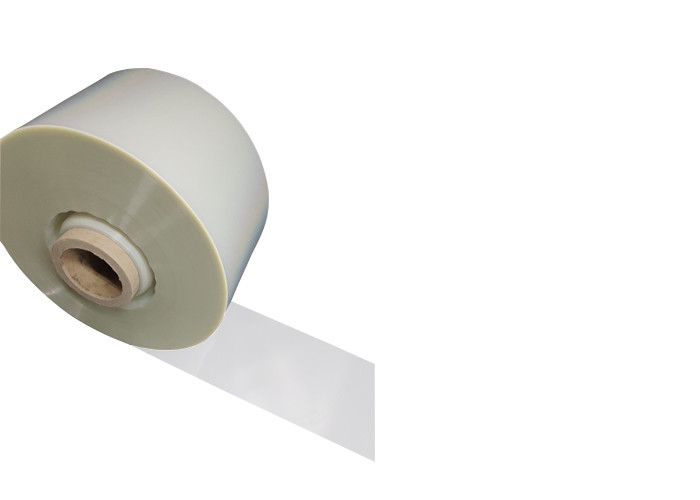

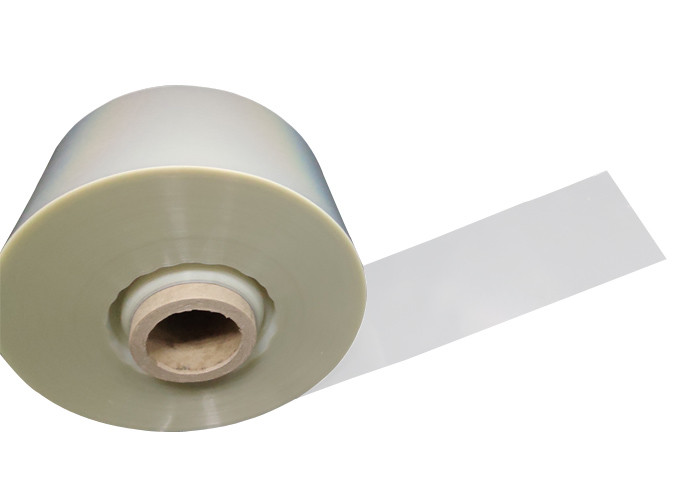

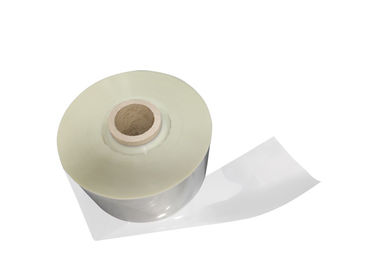

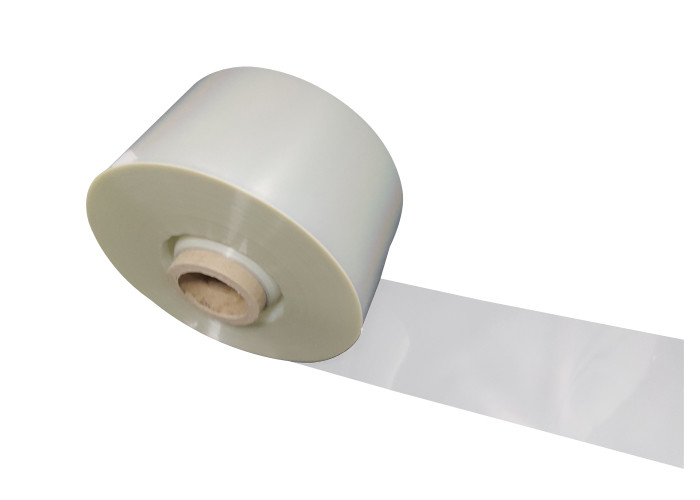

Transparent PET polyester film , customized for wire and cable belt
Characteristic
PET polyester film is called PET film for short. It is characterized by high temperature resistance, good printing, easy processing, good voltage resistance and insulation. It is a thin film material made of polyethylene terephthalate as raw material, which is extruded into thick sheets and then drawn in two directions.
Specifications:
| Item | Unit | Index | Test method | |||||||
| Thickness | µm | 75 | 100 | 125 | 150 | 175 | 188 | 250 | GB12802.2-2004 | |
| Deviation of thickness | % | ±3 | ±3 | ±3 | ±3 | ±4 | ±4 | ±5 | GB12802.2-2004 | |
| Tensile strength | MD | Mpa | ≥180 | ≥170 | ≥170 | ≥160 | ≥160 | ≥150 | ≥150 | GB12802.2-2004 |
| TD | ||||||||||
| Elongation at break | MD | % | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | GB12802.2-2004 |
| TD | ||||||||||
| Heat shrinkage(150℃,30min) | MD | % | ≤1.6 | ≤1.6 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | GB12802.2-2004 |
| TD | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | |||
| Light transmittance | % | ≥86 | ≥85 | ≥85 | ≥85 | ≥85 | ≥85 | ≥83 | GB2410-80 | |
| Haze | % | ≤1.5 | ≤1.6 | ≤1.8 | ≤2.0 | ≤2.8 | ≤3.0 | ≤3.8 | GB2410-80 | |
| Electrical strength | V/µm | ≥105 | ≥90 | ≥80 | ≥75 | ≥69 | ≥66 | ≥60 | GB12802.2-2004 | |
| Volume resistivity | Ω.m | ≥1×1014 | GB12802.2-2004 | |||||||
| Relative dielectric constant(50Hz) | 2.9~3.4 | GB12802.2-2004 | ||||||||
| Dielectric loss tangent(50Hz) | ≤3×10-3 | GB12802.2-2004 | ||||||||
| Wetting tension | mN/m | ≥52 | GB/T 13541-1992 | |||||||
Application:
Keyboard film switch, inscription (silk screen) printing film, film window, electronic toy film circuit, soft circuit board printing, FPCB soft circuit board consumables, heat transfer printing, bronzing, sound film diaphragm, soft circuit printing, film switch.
