Product Details:
Payment & Shipping Terms:
|
| Thickness: | 0.188mm-0.25mm | Width: | 500mm-1500mm |
|---|---|---|---|
| Length: | 100m-6000m | Material: | Bopet Film |
| Type: | Stretch Film | Hardness: | Soft |
| Processing Type: | Multiple Extrusion | ||
| High Light: | bopet polyester film,matte transparency film |
||

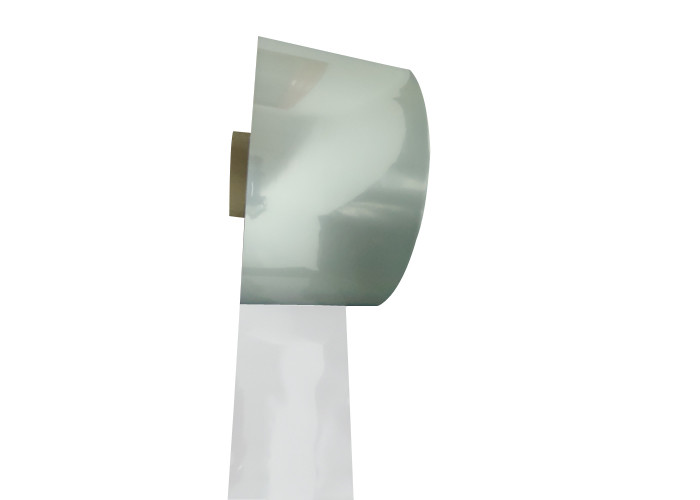

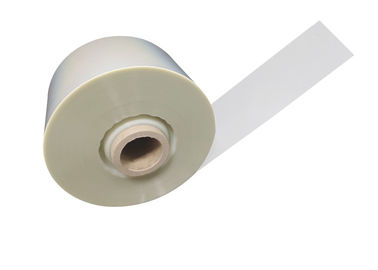

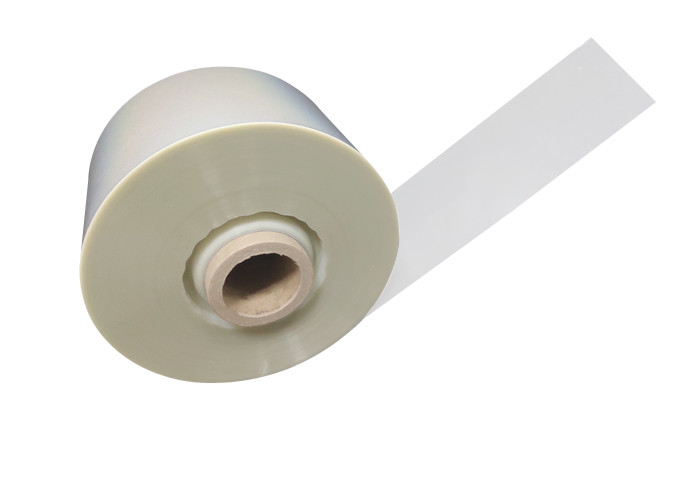

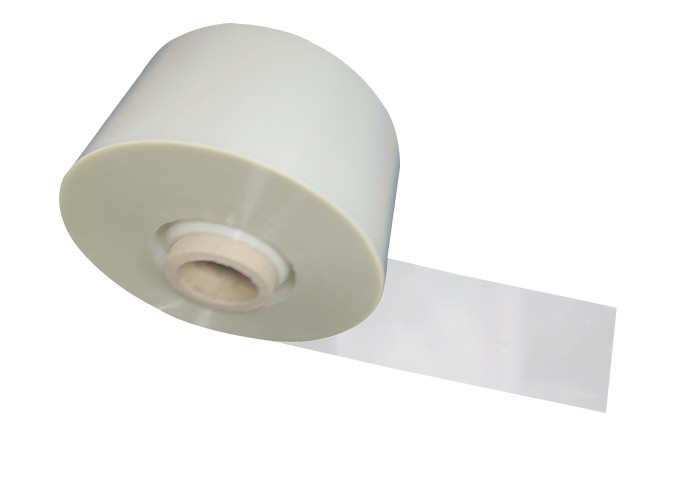

Environmental protection transparent PET film , waterproof color antistatic pet roll
Product Description:
1. High tear strength transparent adhesive polyester film
2. Anti static coating can be applied
3. High definition, good chemical resistance and wear resistance
4. Ideal for PCB manufacturing and testing
Specifications:
| Properties | Unit | Test Values | Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 50 | ||||||||
| Tensile Strength | MD | MPa | 205 | GB/T 13542.2-2009 | |||||||
| TD | 205 | ||||||||||
| Elongation at Break | MD | % | 120 | GB/T 13542.2-2009 | |||||||
| TD | 115 | ||||||||||
| Thermal Shrinkage 150℃×30min | MD | % | 2 | GB/T 13541 | |||||||
| TD | 1 | ||||||||||
| Industrial electrical strength | V/μm | 185 | GB/ 12802.2-2004 | ||||||||
Use:
Electronic parts packaging, folding box, ready to wear collar, credit card, printing tape, with mold label.
