| Name: | Milky White Mylar Polyester Film | Type: | Insulation Paper |
|---|---|---|---|
| Usage: | High Temperature | Hardness: | Soft |
| Processing Type: | Multiple Extrusion | Thickness: | 0.025-0.5mm |
| Width: | 100mm-1500mm | Length: | 100m-6000m |
| High Light: | Milky White Mylar Polyester Film,Multiple Extrusion Mylar Polyester Film,125mic Translucent Mylar Film |
||

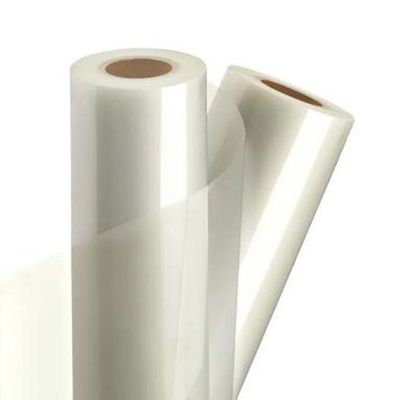

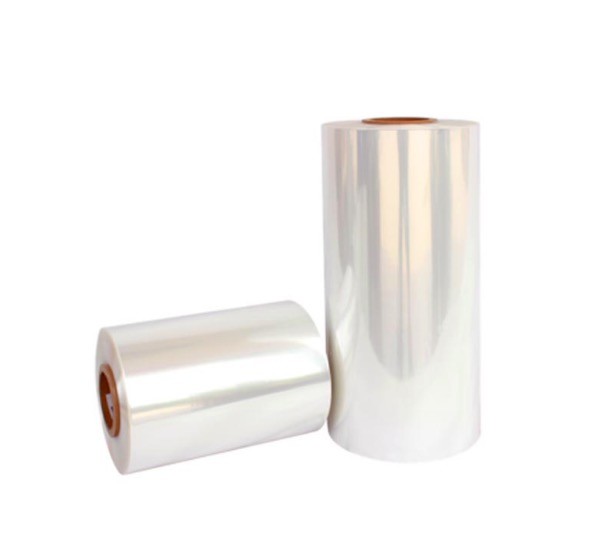

Translucent PET Motor Film Multiple Extrusion 125mic Milky White
Specifications:
|
Name:
|
paper/pet film lamination
|
|
Thickness and Tolerance:
|
0.15mm +/-0.02 , 0.18mm +/-0.02
0.20mm +/-0.02 , 0.25mm +/-0.02 0.30mm +/-0.03 , 0.35mm +/-0.02 0.40mm +/-0.03 , 0.45mm +/-0.03 |
|
Standard width:
|
1000mm +/-5
|
|
Package:
|
50 kgs +/-5 per roll
|
|
Breakdown voltage:
|
0.15mm ------8 kv , 0.18mm----8kv
0.20mm ------8kv , 0.25mm----8kv 0.30mm-------8kv , 0.35mm-----8kv 0.40mm-------8kv , 0.45mm-----8kv |
|
Thermal Class:
|
E (120 degree)
|
|
Standard:
|
IEC60626-3-100
|
|
Colour:
|
Green, blue or brown
|
|
Certificate:
|
ISO9001, ROHS, REACH
|
Characteristics:
1. High production efficiency
2. Can be used for electrical insulation
