Two Sides Black Polyester Film , PET Material Sound Film / Insulation Gasket

Customer Reviews
I always add get lots of useful suggestions from Wangtai factory, they are professional, hardworking and careful.

—— Ceyhan Capanoglu

Wantai's materials are very good, the packaging is also good, the delivery speed is fast, the main price is affordable, the quality of made in China is very good.

—— Richard

I'm Online Chat Now

Two Sides Black Polyester Film , PET Material Sound Film / Insulation Gasket

China Two Sides Black Polyester Film , PET Material Sound Film / Insulation Gasket supplier
Two Sides Black Polyester Film , PET Material Sound Film / Insulation Gasket supplier Two Sides Black Polyester Film , PET Material Sound Film / Insulation Gasket supplier

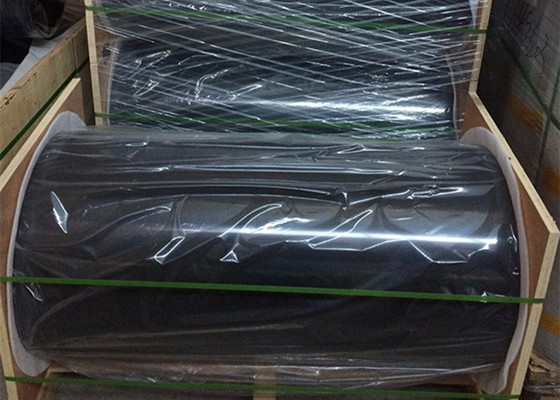

Large Image :  Two Sides Black Polyester Film , PET Material Sound Film / Insulation Gasket

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: Watai
Certification: ROSH,SVHC,MSDS,TDS
Model Number: WT

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Wooden Packaging
Delivery Time: 30 work days
Supply Ability: 1000 Tons per
Contact Now
Detailed Product Description
Material: Black PET Film Type: Stretch Film
Usage: Irising Film Feature: Moisture Proof
Hardness: Soft Processing Type: Multiple Extrusion
Width: 20mm-1500mm Length: 100m-6000m
Color: Black

Black Bright PET Film/Two sides of PET material/sound film/insulation gasket



Product Description:



Two sides of PET material, 150 degrees heat tolerance for half an hour

For shading, compound, printing, sound film, insulation gasket, dust cap, wholesale, retail.



Specifications:



Thickness Width Length Paper Core
4.5mic-250mic 20-1500mm 100-6000m

76mm (3 inches)

152mm (6 inches)



Characteristics:

1. This product is Environmentally-friendly, non-toxic, odorless and benzene-free. Solvent is not used during the production, therefore harmless to the Environment and people

2. Stable performance with good resistance to high temperature (150 degrees). We can produce product with surface that has tension and release force.



Typical performance

Item Unit Index Test method
Thickness µm 12 25 50 75 100 125 188 250 GB12802.2-2004
Deviation of thickness % ±2 ±2 ±2 ±3 ±3 ±3 ±4 ±4
Tensile strength MD Mpa ≥180 ≥180 ≥175 ≥170 ≥160 ≥160 ≥150 ≥150 GB12802.2-2004
TD
Elongation at break MD % ≥100 ≥100 ≥100 ≥100 ≥100 ≥100 ≥100 ≥100 GB12802.2-2004
TD
(150℃,30min) MD % ≤1.3 ≤1.3 ≤1.3 ≤1.3 ≤1.3 ≤1.3 ≤1.3 ≤1.3 GB12802.2-2004
Heat shrinkage TD ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
Haze % ≤1.0 ≤1.0 ≤1.5 ≤2.0 ≤2.6 ≤3.0 ≤4.0 ≤4.0 GB2410-80
Wetting tension mN/m       ≥52 GB/T 13541-1992
Electrical strength V/µm ≥100 ≥100 ≥95 ≥90 ≥80   ≥66 ≥66 GB12802.2-2004
Volume resistivity Ω.m       ≥1×1014 GB12802.2-2004
Relative dielectric constant(50Hz)         2.9~3.4 GB12802.2-2004

Dielectric loss tangent(50Hz)         ≤3×10-3 GB12802.2-2004
