| Material: | Black PET Film | Type: | Stretch Film |
|---|---|---|---|
| Usage: | Irising Film | Feature: | Moisture Proof |
| Hardness: | Soft | Processing Type: | Multiple Extrusion |
| Thickness: | 4.5mic - 250mic | Length: | 100m-6000m |
| Width: | 20mm-1500mm | ||
| High Light: | pet thin film,pet film roll |
||

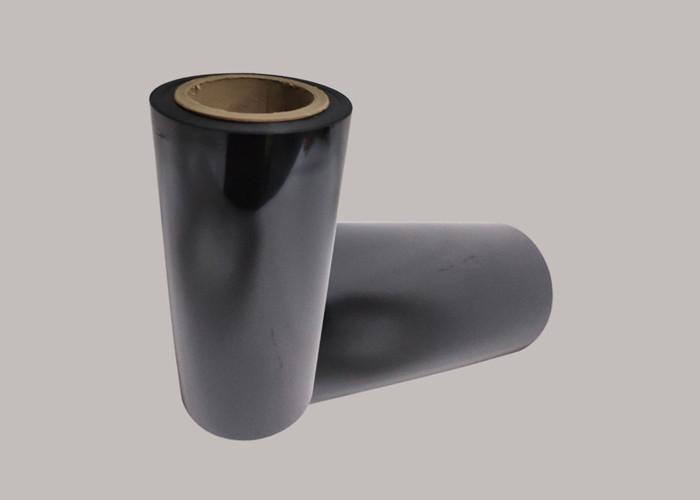

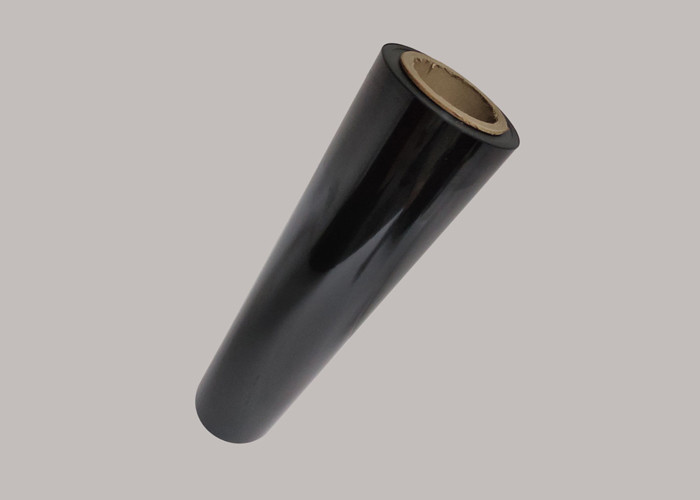

Black PET High Temperature Resistant Film, Die Cutting and Punching PET Film Manufacturer
Product Description:
Width between 20 mm and 1500 mm can be arbitrarily cut. Length can be rewinded according to customer requirements. The products can be sliced and punched in addition to coils.
Specifications:
| Thickness | Width | Length | Paper Core |
| 4.5mic-250mic | 20-1500mm | 100-6000m |
76mm (3 inches) 152mm (6 inches) |
Characteristics:
1. This product is Environmentally-friendly, non-toxic, odorless and benzene-free. Solvent is not used during the production, therefore harmless to the Environment and people
2. Stable performance with good resistance to high temperature (150 degrees). We can produce product with surface that has tension and release force.
Typical performance
| Item | Unit | Index | Test method | ||||||||
| Thickness | µm | 12 | 25 | 50 | 75 | 100 | 125 | 188 | 250 | GB12802.2-2004 | |
| Deviation of thickness | % | ±2 | ±2 | ±2 | ±3 | ±3 | ±3 | ±4 | ±4 | ||
| Tensile strength | MD | Mpa | ≥180 | ≥180 | ≥175 | ≥170 | ≥160 | ≥160 | ≥150 | ≥150 | GB12802.2-2004 |
| TD | |||||||||||
| Elongation at break | MD | % | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | GB12802.2-2004 |
| TD | |||||||||||
| (150℃,30min) | MD | % | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | GB12802.2-2004 |
| Heat shrinkage | TD | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ||
| Haze | % | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.6 | ≤3.0 | ≤4.0 | ≤4.0 | GB2410-80 | |
| Wetting tension | mN/m | ≥52 | GB/T 13541-1992 | ||||||||
| Electrical strength | V/µm | ≥100 | ≥100 | ≥95 | ≥90 | ≥80 | ≥66 | ≥66 | GB12802.2-2004 | ||
| Volume resistivity | Ω.m | ≥1×1014 | GB12802.2-2004 | ||||||||
| Relative dielectric constant(50Hz) | 2.9~3.4 | GB12802.2-2004 | |||||||||
| Dielectric loss tangent(50Hz) | ≤3×10-3 | GB12802.2-2004 | |||||||||
