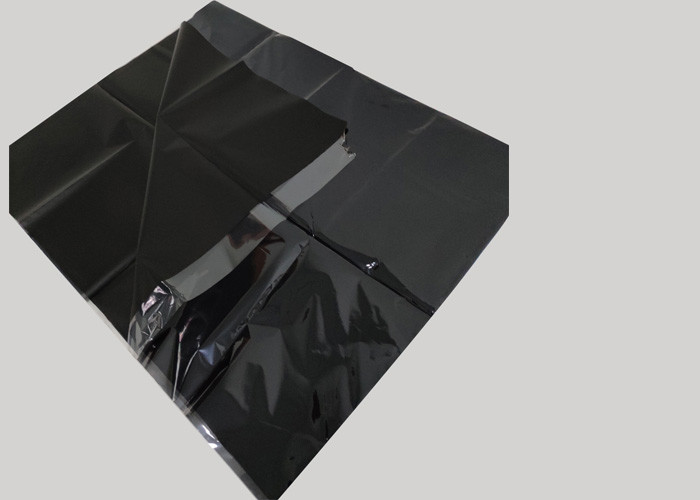

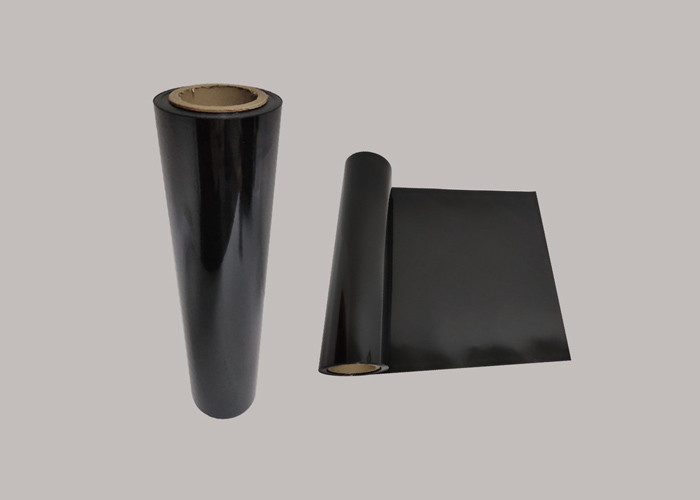

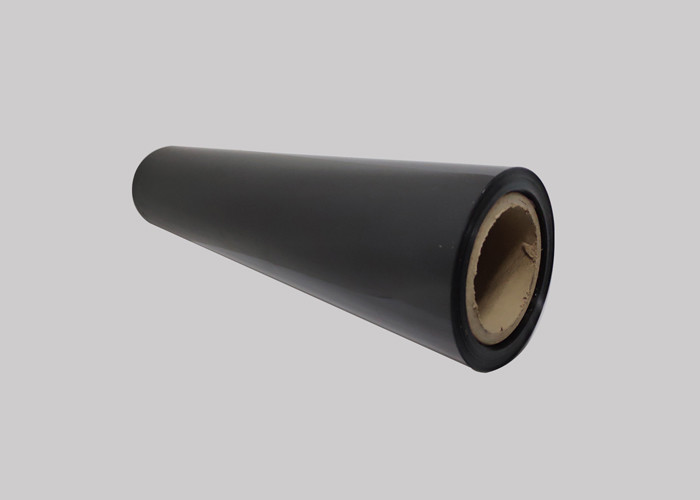

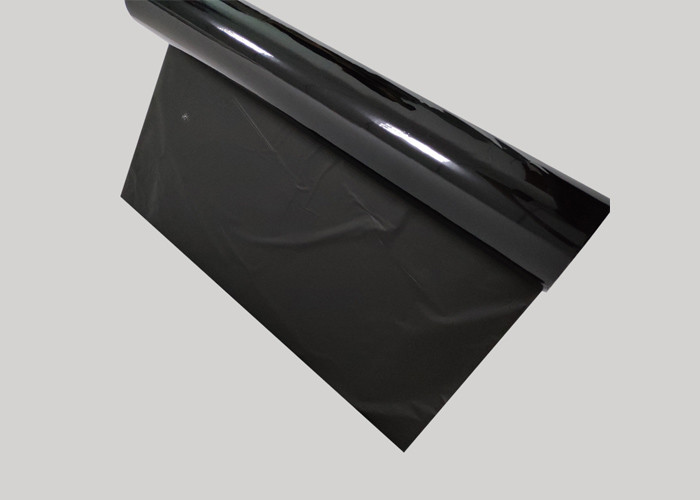

Electroplated Sub Black Pet Film Die Cutting Punching Back Collagen Material
Product Description:
The electroplated PET film can be die-cut, customized and glued on the back. It is widely used and affordable.
Specifications:
| Thickness | Width | Length | Paper Core |
| 4.5mic-12.5mic | 20-1090mm | 100-6000m | 152mm (6 inches) |
Feature:
1.Lightproof & Light reflecting 92%-98%
2.Waterproof and Heat Insulating
3.Corrosion resistance and aging resistance
4.Durable, puncture and tear resistant
Typical performance
| Item | Unit | Index | Test method | ||||||||
| Thickness | µm | 12 | 25 | 50 | 75 | 100 | 125 | 188 | 250 | GB12802.2-2004 | |
| Deviation of thickness | % | ±2 | ±2 | ±2 | ±3 | ±3 | ±3 | ±4 | ±4 | ||
| Tensile strength | MD | Mpa | ≥180 | ≥180 | ≥175 | ≥170 | ≥160 | ≥160 | ≥150 | ≥150 | GB12802.2-2004 |
| TD | |||||||||||
| Elongation at break | MD | % | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | GB12802.2-2004 |
| TD | |||||||||||
| (150℃,30min) | MD | % | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | ≤1.3 | GB12802.2-2004 |
| Heat shrinkage | TD | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ||
| Haze | % | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.6 | ≤3.0 | ≤4.0 | ≤4.0 | GB2410-80 | |
| Wetting tension | mN/m | ≥52 | GB/T 13541-1992 | ||||||||
| Electrical strength | V/µm | ≥100 | ≥100 | ≥95 | ≥90 | ≥80 | ≥66 | ≥66 | GB12802.2-2004 | ||
| Volume resistivity | Ω.m | ≥1×1014 | GB12802.2-2004 | ||||||||
| Relative dielectric constant(50Hz) | 2.9~3.4 | GB12802.2-2004 | |||||||||
| Dielectric loss tangent(50Hz) | ≤3×10-3 | GB12802.2-2004 | |||||||||
Inner Packing
1. bubble film----to protect from collision during transportation
2. specified label----factory label or customized label without factory information
Outer Packing
1. different types of packing way according to roll size or customer's request
2. wooden pallet with or without fumigation
