Product Details:
Payment & Shipping Terms:
|
| Type: | Insulation Film | Thickness: | 12um - 100um |
|---|---|---|---|
| Material: | Black PET Film | Feature: | Moisture Proof |
| Hardness: | Soft | Processing Type: | Multiple Extrusion |
| Length: | 100m-6000m | Width: | 20mm-1500mm |
| High Light: | pet film roll,black polyester film |
||

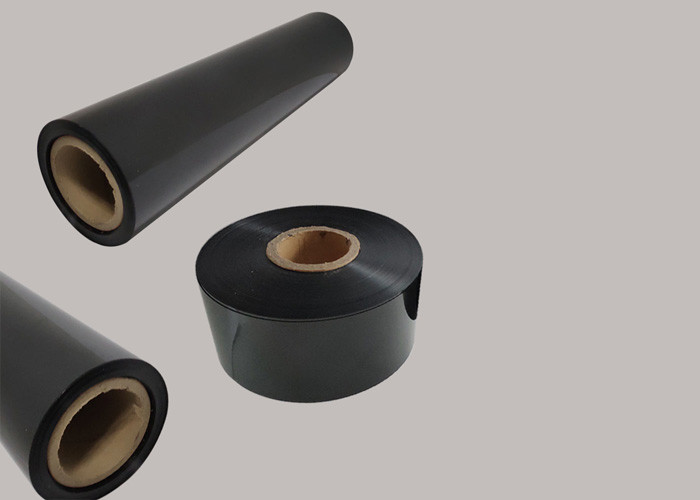

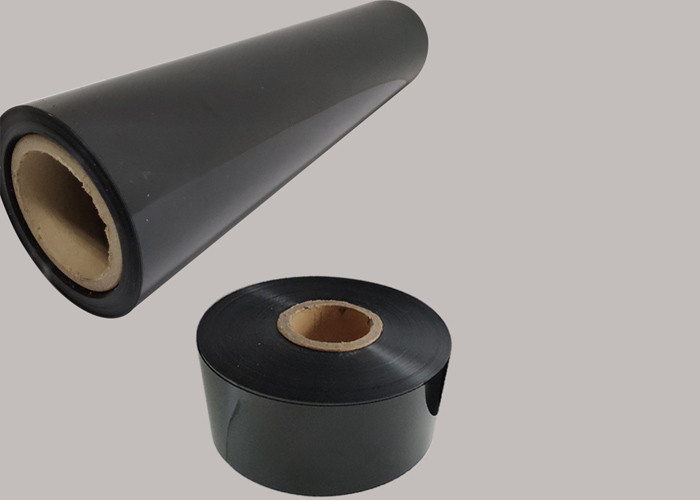

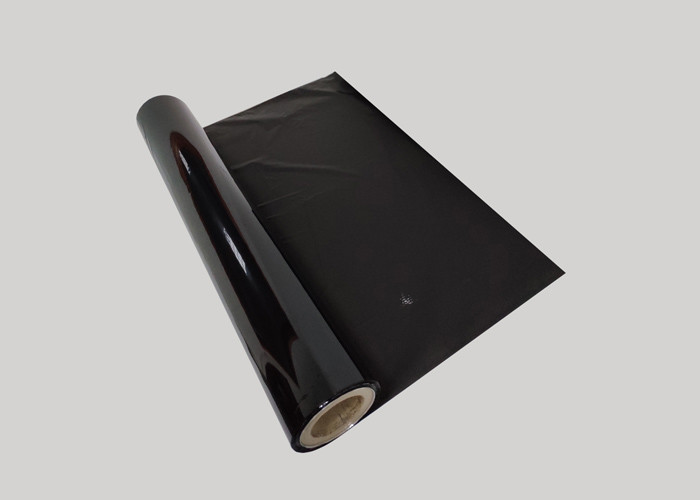

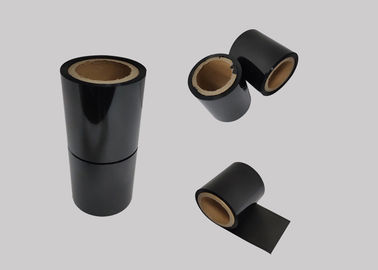

Moisture Proof Black PET Film Thickness 12um - 100um Multiple Extrusion Processing
Product Description:
Black film with low light transmittance and uniform corona, excellent electrical insulation properties. Black film with high shading performance; Excellent electrical insulation performance; Very good coating processing performance.
Characteristics:
black film with low light transmittance and uniform corona, excellent electrical insulation properties.
Typical performance:
| Properties | Unit |
Test Values |
Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 20-125 | GB6845 ASTM D882 | |||||||
| Average Thickness Deviation | % | 0.22 | |||||||||
| Tensile Strength | MD | MPa | 180 | ||||||||
| TD | 200 | ||||||||||
| Elongation at Break | MD | % | 120 | ||||||||
| TD | 110 | ||||||||||
| F5 value | MD | MPa | 100 | ||||||||
| TD | 120 | ||||||||||
| Thermal Shrinkage 150℃×30min | MD | % | 1 | ||||||||
| TD | 0.5 | ||||||||||
