| Surface: | Matte | Hardness: | Soft |
|---|---|---|---|
| Thickness: | 0.0125mm-0.25mm | Length: | 500mm-1500mm |
| Width: | 100m-6000m | Processing Type: | Multiple Extrusion |
| Type: | Stretch Film | ||
| High Light: | pet thin film,pet film roll |
||

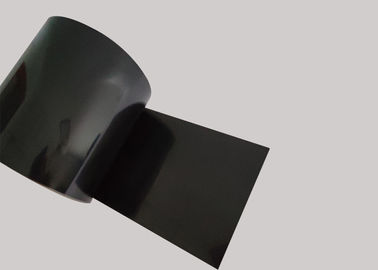

Matte black PET film for printing text , environmentally friendly and non-toxic
Characteristics:
Adopt high quality environmental protection pet as base material, large-scale material coating technology. High quality ink-jet printing consumables are produced, with high transparency, good blackness, clear mesh lines, firm coating, unfit for film removal, firm ink fixation, no ink dispersion, fast ink absorption, PET polyester film for short PET film. It is characterized by high temperature resistance, good printing, easy processing, good voltage resistance and insulation, and fire protection can pass UL 94vtm-2 certification.
Specifications:
| Properties | Unit | Test Values | Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 25-100 | ||||||||
| Tensile Strength | MD | MPa | 170 | ASTM D 882 | |||||||
| TD | 200 | ||||||||||
| Elongation at Break | MD | % | 110 | ASTM D 882 | |||||||
| TD | 110 | ||||||||||
| F5 value | MD | MPa | 100 | ASTM D 882 | |||||||
| Thermal Shrinkage 150℃×30min | MD | % | 1.3 | GB/T 13541 | |||||||
| TD | 0.5 | ||||||||||
| Transmittance | % | 75 | BG2410 | ||||||||
Application:
Screen printing panel, membrane switch, membrane panel, membrane circuit, touch switch and other membrane categories, medical equipment, instruments and meters, electromechanical, office equipment, electronic toys, home appliances and other control and operation panels.
