Product Details:
Payment & Shipping Terms:
|
| Material: | Mylar,Bopet Film | Thickness: | 0.0125mm-0.25mm |
|---|---|---|---|
| Length: | 500mm-1500mm | Width: | 100m-6000m |
| Processing Type: | Multiple Extrusion | Surface: | Bright,Matte |
| High Light: | pet thin film,pet film roll |
||

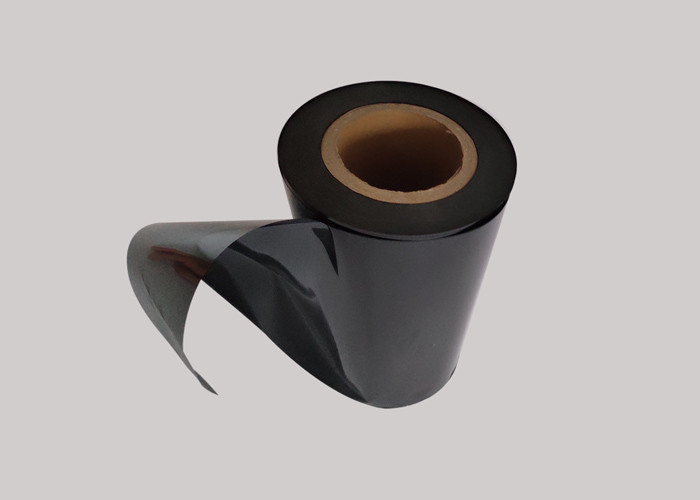

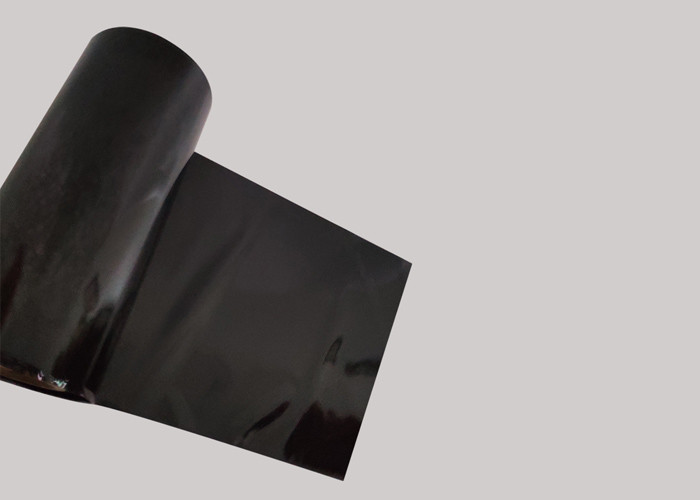

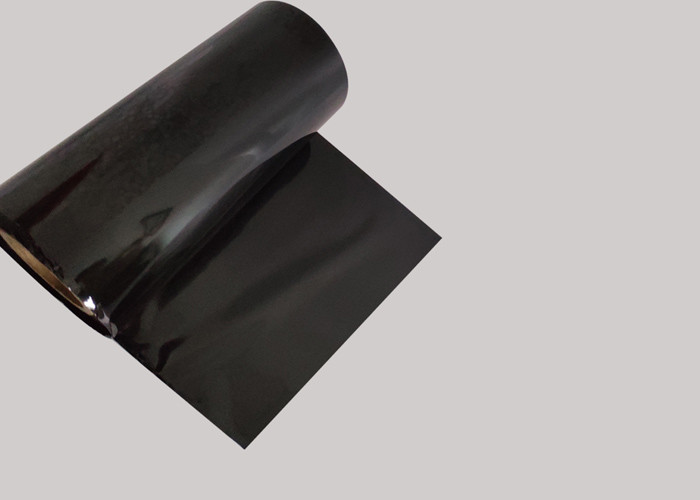

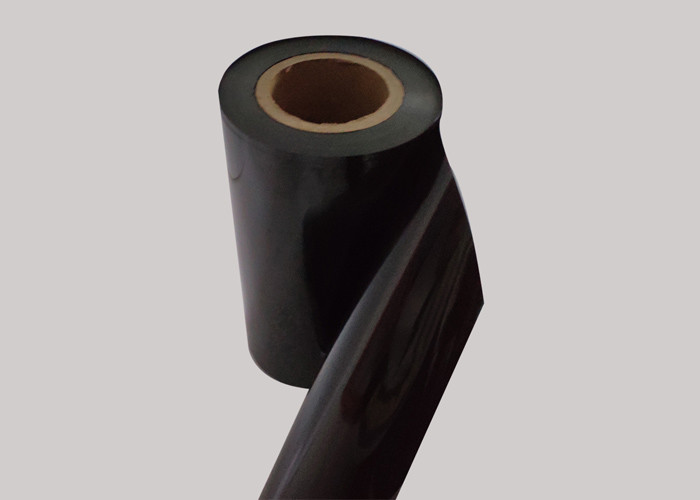

Wear and friction resistant black PET film , die cut and punched
Characteristics:
This product inherits the original chemical and physical properties of polyester film, and has the unique advantages of good black coverage, even color, smooth and flat surface, no fading, good thermal stability, etc
Specifications:
| Properties | Unit | Test Values | Testing Standard | ||||||||
| Single Layer Thickness | Average Thickness | μm | 20-125 | ||||||||
| Tensile Strength | MD | MPa | 180 | ASTM D 882 | |||||||
| TD | 180 | ||||||||||
| Elongation at Break | MD | % | 120 | ASTM D 882 | |||||||
| TD | 120 | ||||||||||
| F5 value | MD | MPa | 100 | ASTM D 882 | |||||||
| Thermal Shrinkage 150℃×30min | MD | % | 2 | GB/T 13541 | |||||||
| TD | 1 | ||||||||||
| Transmittance | % | ≥99.9 | GB2410 | ||||||||
Application:
It can be used to manufacture black tape, tape black slip paper, light shield, electroacoustic equipment, gluing, tape, punching, insulating spacer, film line screen printing and other industries.
