Product Details:
Payment & Shipping Terms:
|
| Material: | PET | Packing: | Cartons , Pallets |
|---|---|---|---|
| Color: | Black , White , Transparent , Matt | Type: | Multiple Extrusion |
| Surface: | Glossy , Matt | Thickness: | 4.5 Micron - 300 Micron |
| Length: | 100m-6000m | Width: | 100mm-1500mm |
| High Light: | Transparent Black PET Release Film,1500mm Black PET Release Film,300 micron Black PET Film |
||

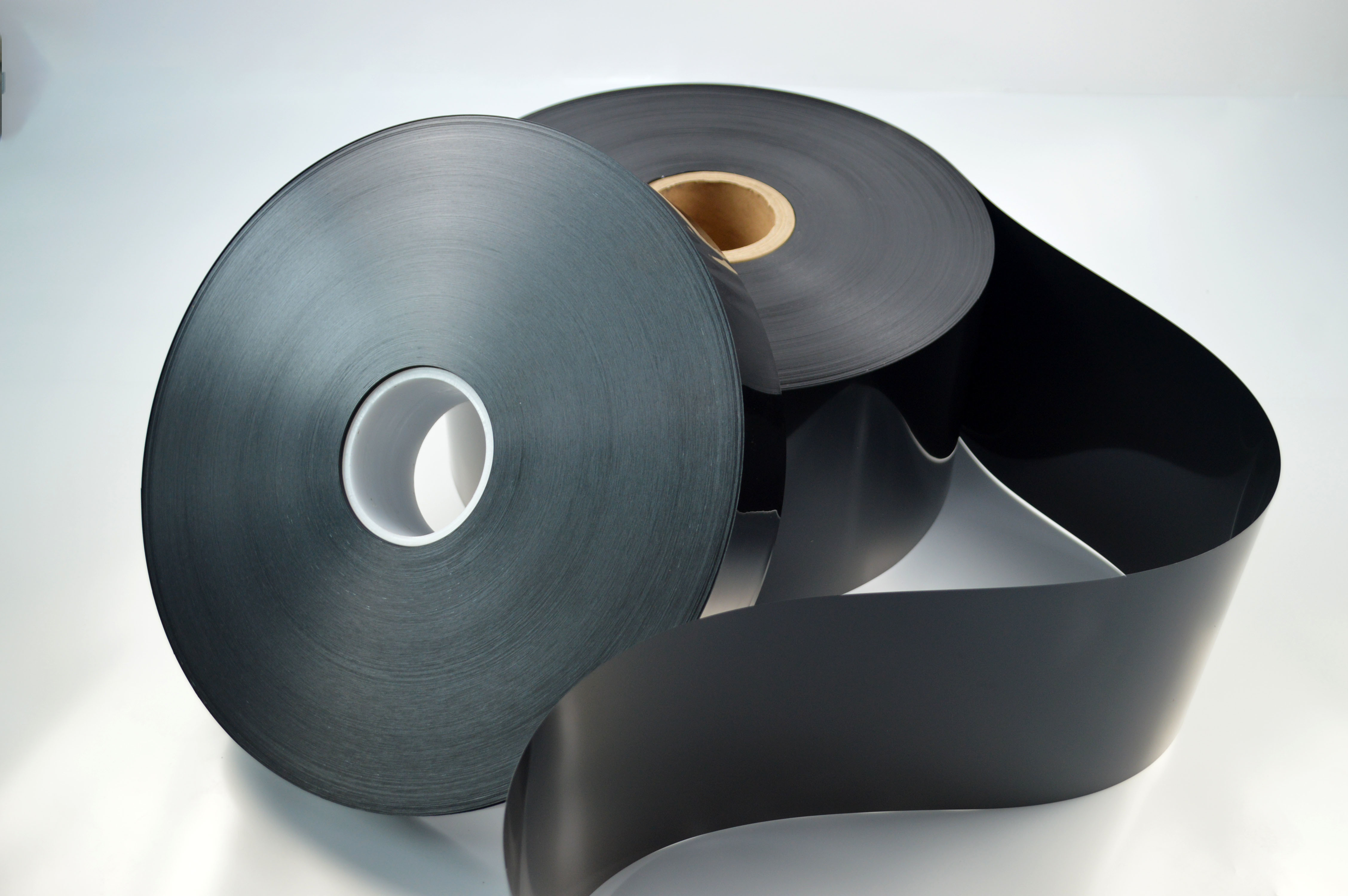

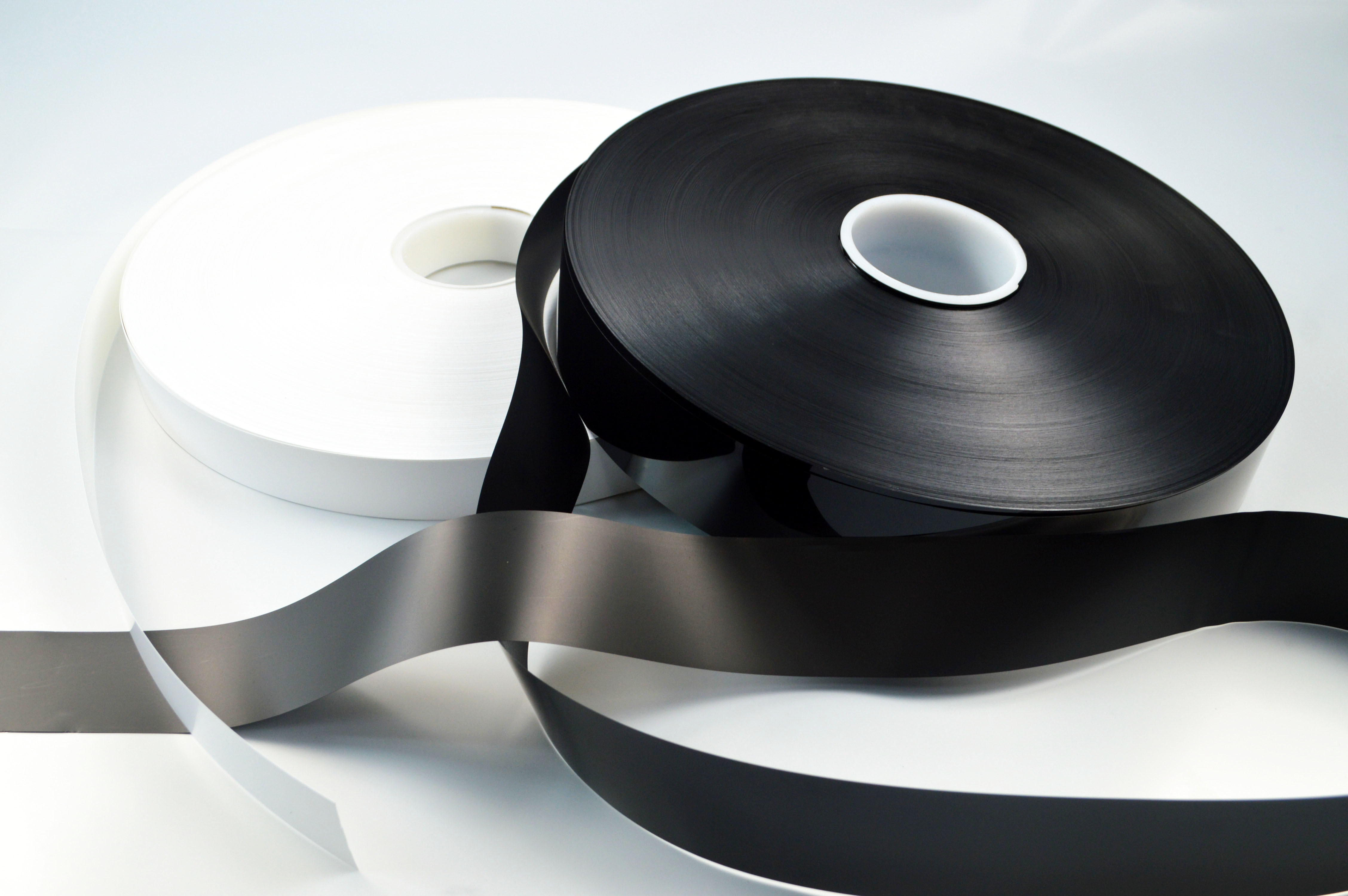

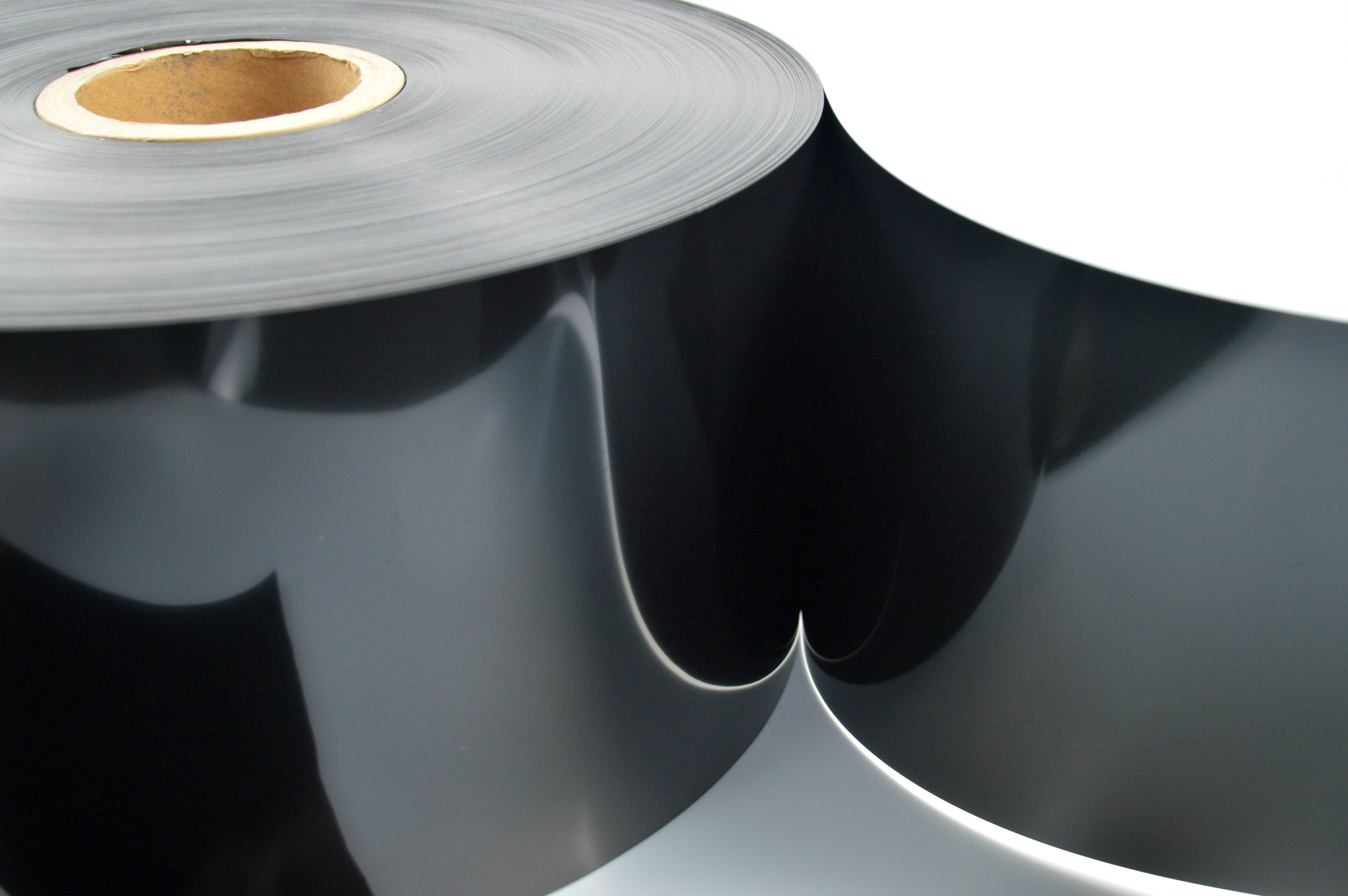

Features :
1.Highly opaque with good pigment distribution
2.Excellent thermal and dimensional stability
3.Good handling characteristics
4.Available in both reels and sheets in a wide range of thicknesses
5.Good black enveloping, uniform chroma
6.Excellent electrical insulation
7.Bright or matte
8. Different thickness : 4.5 micron , 9 micron , 12 micron , 25 micron to 250 micron , and 300 mircon .
Typical performance:
| Thickness(mm) | N.Weight per roll(KG) | Pound(LB) | Width × Length mm × m | Width × Length Foot × Foot | |||||
| 0.05(0.002") | 55 | 121 | 610 × 1387 | 2'×4550' | |||||
| 0.075(0.003") | 60 | 132 | 610 × 1009 | 2'×3310' | |||||
| 0.1(0.004") | 78 | 172 | 930 × 645 | 3'×2116' | |||||
| 0.125(0.005") | 89.3 | 197 | 930 × 591 | 3'×1938' | |||||
| 0.175(0.007") | 89.3 | 197 | 930 × 422 | 3'×1384' | |||||
| 0.25(0.010") | 89.3 | 197 | 930 × 295 | 3'×971' | |||||
| 0.38(0.015") | 89.3 | 197 | 930 × 194 | 3'×636' | |||||
| 0.43(0.017") | 89.3 | 197 | 930 × 171 | 3'×564' | |||||
| 0.50(0.020") | 89.3 | 197 | 930 × 148 | 3'×485' |
Application:
It is suitable for power transformer, VCD DVD player, telephone, mobile phone, adapter, waterproof power supply, lamp power supply, computer, cosmetics, speaker, toy, TV, lighting, car recorder and other electronic supporting products.
Black polyester films are used in electronic components, drum skins, automotive and other general manufacturing industries. HiFi Polyester Film offers a range of black polyester films in thicknesses from 50 to 250 microns and can supply either reels or sheets.

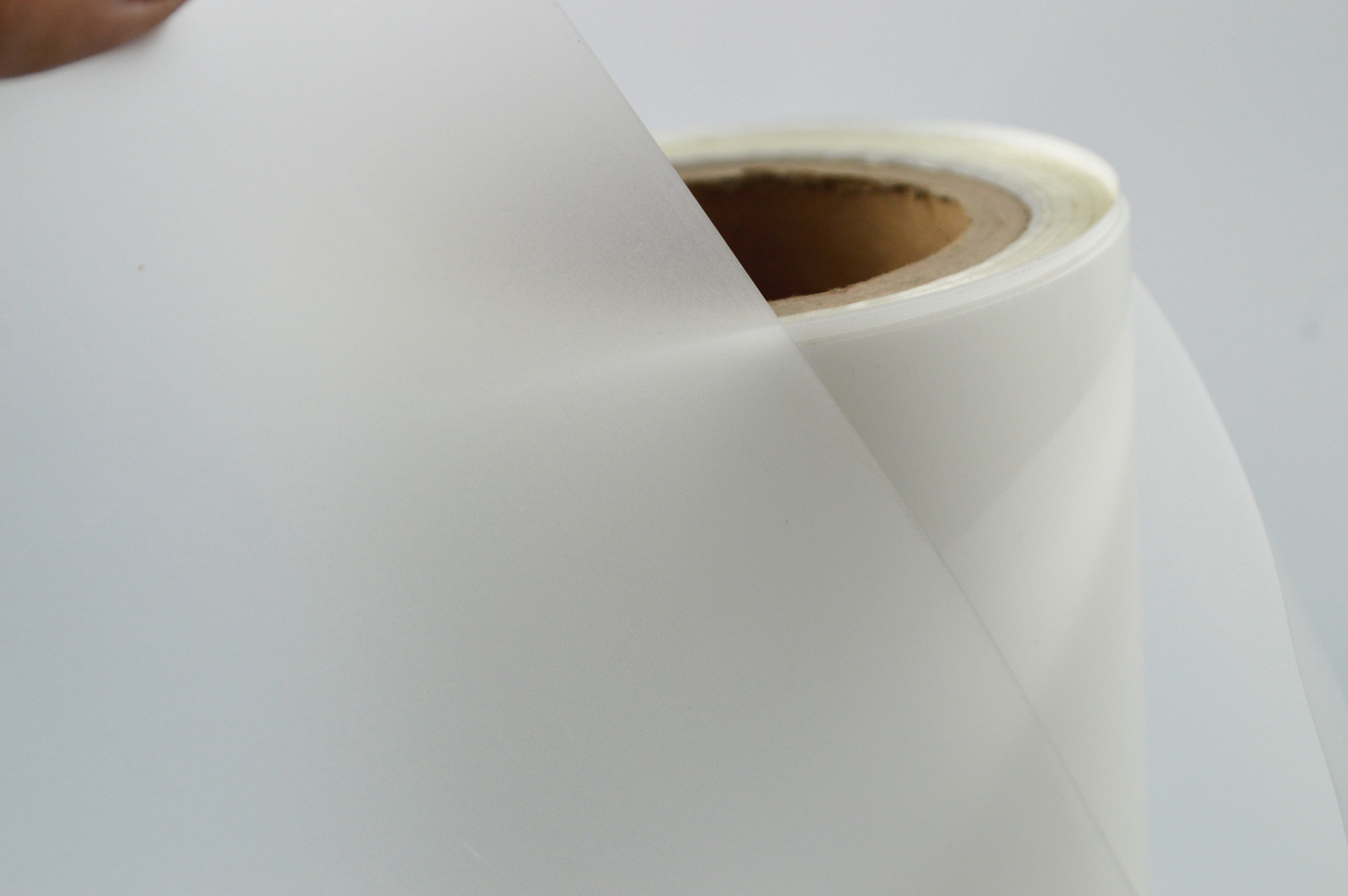

PET Release Film :
Feature :
1. High tensile strength,Good stiffness, not easy to break
2. Good oxygen and moisture resistance,With corrosion resistance
3. Contractile stability,Temperature tolerance -70~160 °C
4. There are 3 types of release film: * Non silicon PET film , * Silicon PET film and * Flouride PET film .
5. Different thicknesses available .
Applications:
printing film, packaging materials, composite materials, laser anti-counterfeiting composite film, drawing paper, electrical insulation materials and capacitors, etc.

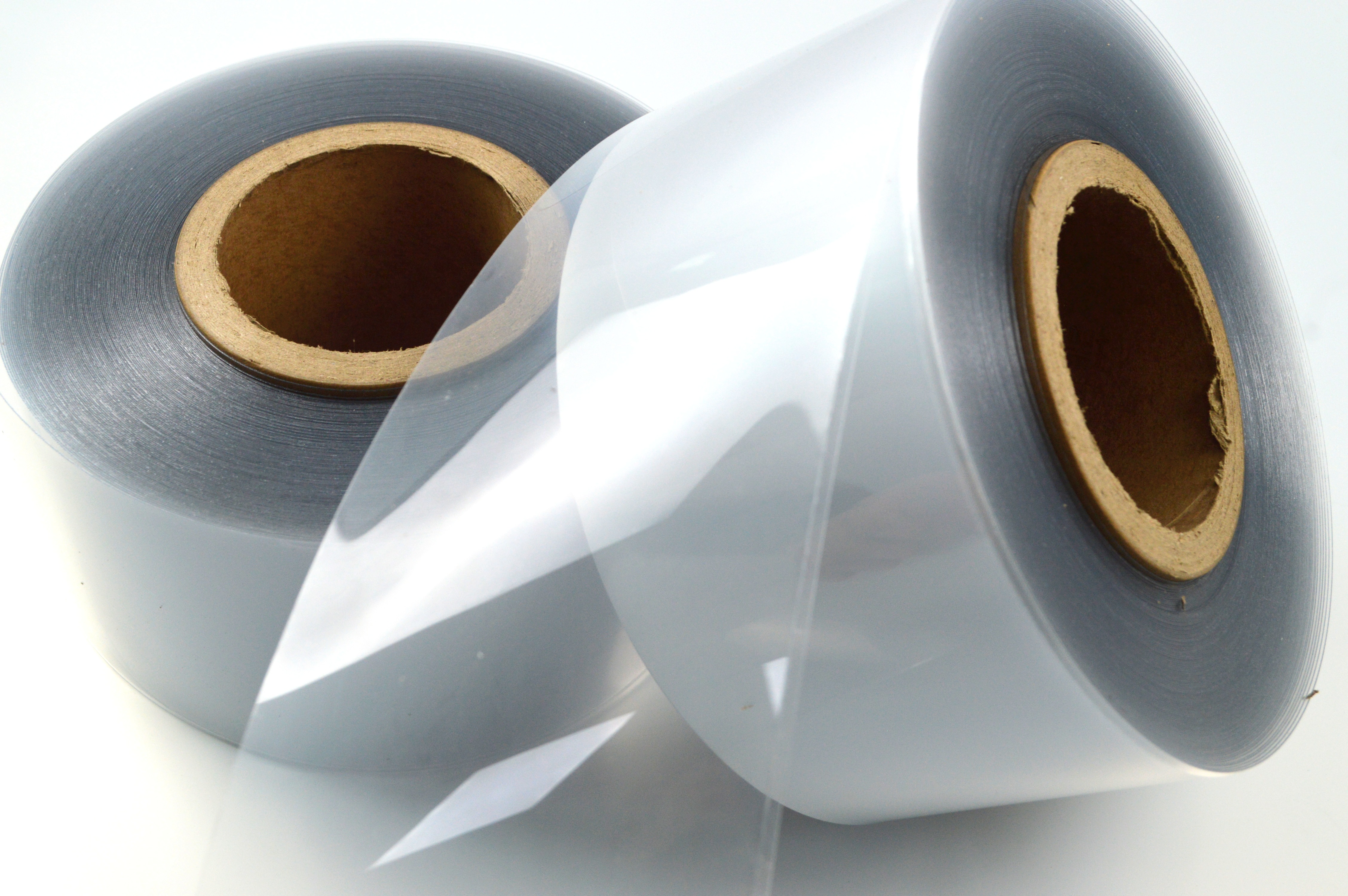

Transparent PET Film :
Product Description:
High cleanliness,Optical level,coating on the surface,It is beneficial to post processing,Strong adhesion,,Pass 100 test completely.
For printing,Hardener and anti-scratch,Can be customized according to requirements.Sticking protective film, Cutting precision, Coiling leveling,Suspended packaging
Feature
1. Harmless to the Environment and people
2. Performance stability
3. High production efficiency
4. Wide adaptability:Protective film, etc., for electronic and electrical appliances
| Heat resistance (continuous) | 115℃ |
| Heat resistance (short) | 160℃ |
| Combustibility (UL94) | HB |
| Bibulous rate (23℃water soak for 24 hours) | 6% |
| Bending tensile stress | 90MPa |
| Breaking tensile strain | 15% |
| The tensile modulus of elasticity | 3700MPa |
| Normal strain compressive stress(-1% / 2% ) | 26/51MPa |
| Gap pendulum impact test | 2kJ/m² |
| Surface | Glossy /Frost |
| size | 4*8 3*6 3*4 700*1000mm or customized |
